NSI NSi AL600N
NSI AL600N
Kirby Risk #: 3157725
UPC: 66238103109, 662381031099, 00662381031099
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
2HoleStandard BarrelAluminum Compression Lug 600 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
Aluminum Compression Lug 600 MCM, 1/2IN Bolt Size 2 Hole, AL9CU Black
AD Description

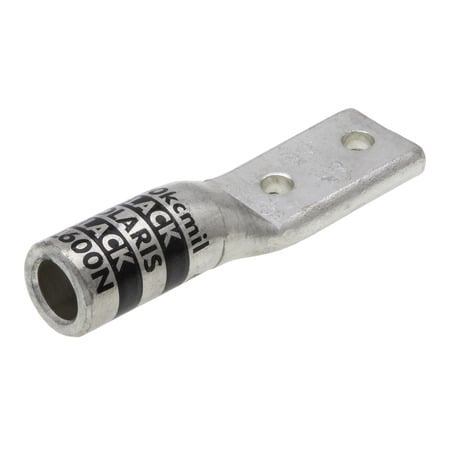

NSI AL600N 2-Hole Compression Lug, 600 kcmil Stranded Conductor, 1/2 in Stud, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Black
|
| Conductor Type |
Stranded
|
| Conductor Size |
600
|
| Country of Origin |
IND
|
| Dimensions |
1.95 in W
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated Bronze
|
| Length1 |
6.7480
|
| Material |
Aluminum
|
| Mounting |
1/2 Mounting Holes
|
| Size |
L=6.74 - W=1.95 - OD=1.44 = ID=.920
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600
|
