Bussmann Bussmann BCM603-2PQ

Name: Bussmann BCM603-2PQ
Brand: Bussmann
SKU: 3156391
Price: 83.08 USD
Availability: InStock

Bussmann BCM603-2PQ

Kirby Risk #: 3156391

UPC: 05171248673, 051712486736, 00051712486736

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

CC FUSE BLOCK W/ PP & QC - 2 POLE

Modified Industry Description

CC FUSE BLOCK W/ PP & QC - 2 POLE

AD Description

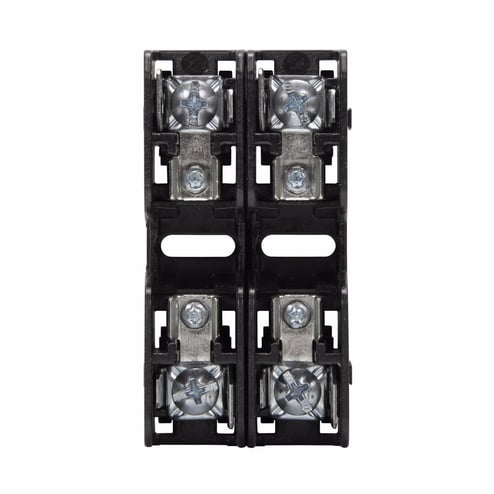

Bussmann BCM603-2PQ Modular Fuse Block, 600 VAC, 30 A, 18 to 10 AWG Wire, 2 Poles

Vendor Description

These new Bussmann series fuse blocks contain multiple features to add versatility, reduce labor and enhance safety of any panel design.

Amperage Rating	30
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name	Bussmann
Class	CC
Country of Origin	MX
Material	Thermoplastic
Package_Quantity	5.000
Special Features	18 to 10 AWG copper wire Blocks are fully modular with a snap together design that provides tool less assembly of multiple-pole blocks at point-of-use to reduce inventory and save assembly time and labor Compact footprint consumes minimal panel space DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost Easy circuit identification with available universal marker labels for fuse block covers Optional see through cover enhances safety with IP20 finger safe protection, lockout/ tag out capability and open circuit indication Terminal options to meet application needs including 1/4 in spade quick connect terminals for faster panel assembly Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
Standard	Contact Manufacturer,RoHS Compliant
Sub_Brand	Bussmann Series
Type	Fuseblock
Voltage Rating	600
