Siemens Siemens 6SE64202AB175AA1


Description

Industry Description

W/O AOP/BOP AMBIENT TEMP -10 TO +50 DEG C PROTECTION IP20 173 X 73 X 149 (H X WX D) VARIABLE TORQUE POWER 0.75 KW OVERLOAD 150% FOR 60S CONSTANT TORQUE POWER 0.75 KW 1AC 200-240V +10/-10% 47-63HZ WITH BUILT IN CLASS A FILTER MICROMASTER 420

Modified Industry Description

DR AC MM420 230V 1PF 1HP 3.9A

AD Description

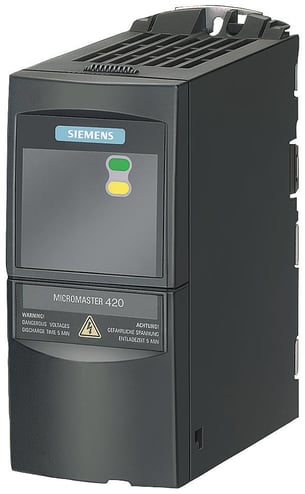

Siemens 6SE64202AB175AA1 MICROMASTER 420 AC Variable Frequency Drive With Built-In Class A Filter, 200 to 240 VAC, 3.9 A, 1 hp, 73 mm W x 149 mm D

Vendor Description

A frequency inverter which can be adapted to every individual requirements without any great effort. MICROMASTER 420, the universal inverter for 3-phase networks and optional field bus connection from Siemens is designed for adaptability. Thanks to its modular design, the extensive standard functions can be supplemented with a wide variety of options. No need for tools, as the operator panels and the communications modules can be simply plugged in. And screwless control terminals - as with the rest of the family - make terminal connection anybodys job.

Specifications

Country of Origin
GB
Length1
7.6400
Special Features

  • 1 programmable analog output (0 to 20 mA)
  • 1 programmable relay output - 30 VDC/5 A resistive load, 250 VAC/2 A inductive load
  • 1 scalable analog input (0 to 10 V) can also be used as a 4th digital input
  • 14 to 122 deg F operating temperature
  • 3 fully programmable isolated digital inputs
  • 3.9 A output at 3-phase, 8.2 A input at 1-phase
  • 8.2 A rated current (HO) input and 3.9 A rated current (HO) output
  • Compact housing as a result of high power density
  • Complete inverter and motor protection
  • Detachable operator panels
  • Easy cable connection, mains and motor connections are separated for optimum electromagnetic compatibility
  • Easy, guided start up
  • Low noise motor operation thanks to high pulse frequencies, adjustable (observe derating if necessary)
  • Modular construction allows maximum configuration flexibility
  • Modular design
  • Screwless control terminals
  • The operator panels and communication modules can be easily exchanged without requiring any tools
  • Without AOP/BOP
