Hubbell Hubbell HBLDS6SSRAC


Description

Industry Description

Hubbell Wiring Device Kellems, Disconnect Switches, Sloped Enclosure,60A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With Aux Contact

Modified Industry Description

SLOPED DISC, 60A UNFUSED, 4X, SS,

AD Description

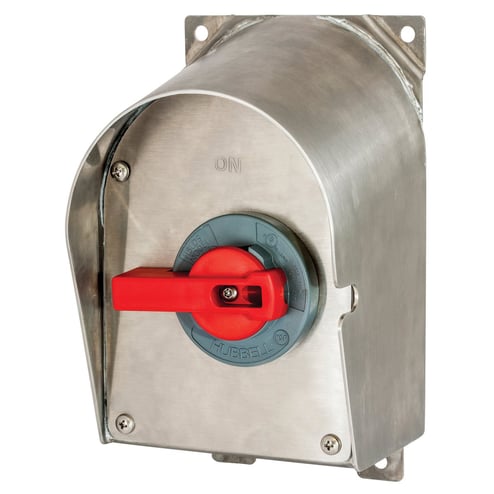

Hubbell® Circuit-Lock® HBLDS6SSRAC Labelless Non-Fusible Sloped Top Disconnect Switch With HBLAC1 Auxiliary Contact, 600 VAC, 60 A, 50 hp, 3PST Contact Form, 3 Poles

Vendor Description

The sloped top disconnect enclosures from Hubbell are engineered to shed water and debris. They will withstand the harshest environments and frequent wash-downs, as well as outperform wherever sanitary conditions are critical. The nonporous 304 stainless steel enclosures are UL Type 4X, 12 and IP69k and designed to be easily cleaned and stay clean. Consistent with best practices in hygienic design, virtually all horizontal surfaces have been eliminated to minimize harbors for dirt and debris. This product has been certified by NSF International for hygienic applications in food and beverage processing. The compact and installation friendly design is the perfect balance of form and function, allowing for ample wiring space and hassle free installations.

Specifications

Application
Motor Starting w/o Overload Protection
Connection
Pressure Screw Terminals
Country of Origin
PL
Environmental_Conditions
Indoor and Outdoor
Length1
12.4950
Mounting
Screw Mount
Number_Of_Poles
3
Power_Rating
36000
Series
Non-Fused
Size
Standard Sized Product
Special Features

  • 15 deg sloped and rounded top aids run-off by minimizing horizontal surfaces
  • Captive cover screws won't fall out
  • Compact footprints
  • Cover cannot be removed when switch is in the "ON" position
  • Cover cannot be removed with switch in the "ON" position
  • Equal or greater wiring space to the standard Hubbell disconnects (HBLDS style)
  • Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures
  • Fixed offset 1/4 in mounting feet meet NEC® airspace requirements for metal enclosures
  • Formed in nonporous 304 stainless steel
  • High visibility red OSHA lockout/tag out handle is protected by a full shroud
  • Highly visible red handle which meets OSHA lockout/tagout capabilities
  • Labelless cover is embossed with on and off
  • Labelless markings on the cover
  • Sloped top design sheds water and debris
Standard
UL508
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Minimum Continuous -40 Deg C without Impact
Type
Enclosed Switch
Voltage Rating
600
