NSI NSi GL50058
NSI GL50058
Kirby Risk #: 3144912
UPC: 66238103635
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
1 HoleShort Barrel Copper Compression Lug w/ PeepHole500MCM-5/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
Copper Compression Lug Short 500 MCM, 5/8IN Bolt Size, BROWN
AD Description

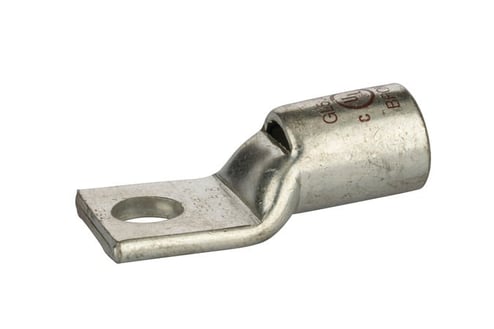

NSI GL50058 1-Hole Compression Lug With Peep Hole, 500 kcmil Stranded Conductor, 5/8 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Brown
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
3.2760
|
| Material |
Copper
|
| Mounting |
5/8 Mounting Hole
|
| Size |
L=3.28 - W=1.54 - OD=1.06 - ID=.830
|
| Special Features |
500 MCM (STR) - 5/8 Mounting Hole
|
| Standard |
UL486
|
| Sub_Brand |
Copper Compression
|
| Type |
Short Barrel - One Hole
|
| Voltage Rating |
600 V
|
