Siemens Siemens 6AV21240UC020AX0


Description

Industry Description

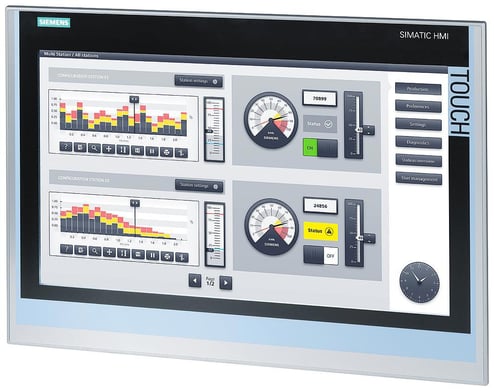

SIMATIC HMI TP1900 COMFORT, COMFORT PANEL, TOUCH OPERATION, 19 WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 24 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11 SP2

Modified Industry Description

TP1900 COMFORT, CE6.0, 19IN TFT,

AD Description

SIMATIC 6AV21240UC020AX0 TP1900 HMI Comfort Panel, 230.4 mm H x 409.8 mm W TFT Display, Ethernet/MPI/Profibus DP/USB

Specifications

Country of Origin
DE
Dimensions
337 mm H x 483 mm W x 75 mm D
Length1
26.1800
Material
Aluminum
Series
TP1900
Special Features

  • -20 to 60 deg C storage
  • 1.3 A current consumption
  • 16-million colors
  • 18-1/2 in widescreen
  • 24 VDC supply voltage
  • 32 W active power input
  • 90% no condensation maximum relative humidity
  • All keys have a service life of 2 million operations
  • All variants can be used as an OPC UA client or as an OPC DA server
  • Configurable from WINCC comfort V11
  • Configuring with the WinCC engineering software of the TIA portal
  • Data security in the event of a power failure for the device and for the SIMATIC HMI memory card
  • Dimmable displays from 0 to 100% via PROFIenergy, via the HMI project or via a controller
  • Easy project transfer via standard cable
  • Excellent HMI functionality for demanding applications
  • Innovative service and commissioning concept through second SD card
  • Integrated high end functionality with archives, scripts, PDF/word/excel viewer, internet explorer, media player
  • IP65/IP20 degree of protection
  • Key operated devices with LED in every function key and new text input mechanism, similar to the keypads of mobile phones
  • Key operated devices with stamped keys for optimum tactile feedback
  • Maximum performance with short screen refresh times
  • Modern industrial design, cast aluminum fronts for 7 in upwards
  • Suitable for extremely harsh industrial environments thanks to extended approvals such as ATEX 2/22
  • Upright installation for all touch devices
  • X86 processor
Temperature_Rating
0 to 45
Type
HMI
