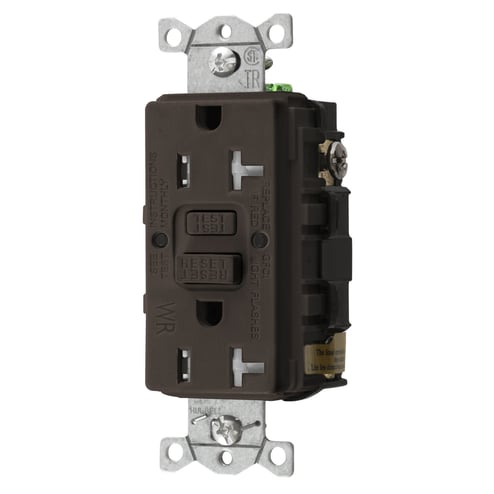

Hubbell Hubbell GFTWRST20


Description

Industry Description

Hubbell Wiring Device Kellems, Power Protection Devices, Receptacle,Weather and Tamper Resistant, Self Test, GFCI, Commercial Grade, 20A125V, 2-Pole 3-Wire Grounding, 5-20R, Brown

Modified Industry Description

20A 125V BROWN WEATHER AND TAMPER RESISTANT SELF TEST GFCI RECEPTACLE , COMMERCIAL GRADE

AD Description

Bryant Electric AUTOGUARD® GFTWRST20 1-Phase Auto Grounding Decorator Duplex Heavy Duty Standard Straight Blade GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

Specifications

Amperage Rating
20
Application
Commercial Tamper-Resistant and Weather Resistant
Brand Name
Hubbell
Color
Brown
Connection
Connectorized
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
5-20R
Number_Of_Poles
2-Pole
Number_Of_Wires
3-Wire Grounding
Phase
Single Phase
Size
Standard Sized Product
Special Features

  • 14 to 12 AWG wire
  • Internal back wiring clamp and guide for quick and secure termination
  • Patented AUTOGUARD self-test technology
  • Patented AUTOGUARD® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Patented shutter design for tamper resistant protection
  • Protects against line and load reversal, no power to the face or downstream if device is miswired
  • Tamper and weather resistant
  • UV and corrosion resistance for harsh and damp applications
Standard
UL498, UL943
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Commercial Self Test
Voltage Rating
125
Wattage
2500
