NSI NSi L414
NSI L414
Kirby Risk #: 3140120
UPC: 66238103441, 00662381034410
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

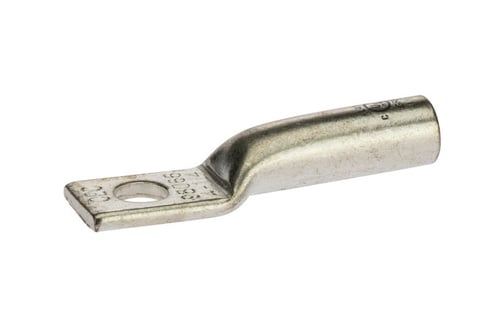

1 Hole Long Barrel Copper Compression Lug 4 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Modified Industry Description
COMPRESSION LUG
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Gray
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
1.7720
|
| Material |
Copper
|
| Mounting |
1/4 Mountinng Hole
|
| Size |
L=1.77 - W=.490 - OD=.340 - ID=.250
|
| Special Features |
# 4 AWG (STR) - 1/4 Mounting Hole
|
| Standard |
UL486
|
| Sub_Brand |
Copper Compression
|
| Type |
Long Barrel - One Hole
|
| Voltage Rating |
600 V
|
