ERICO Erico CAT16HPBC200


Description

Industry Description

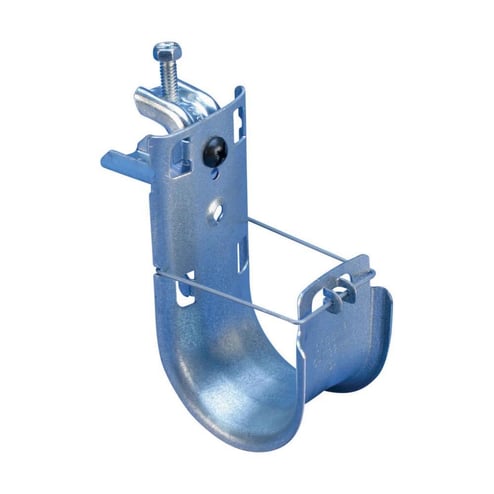

nVent CADDY Cat HP J-Hook with BC200 Beam Clamp, 1" dia, 1/2" Max Flange

Modified Industry Description

J Hook with BC200 Beam Clamp 1 IN dia 1/2 IN Max Flange

AD Description

Caddy® CAT16HPBC200 CAT HP J-Hook With BC200 Beam Clamp, 1 in Dia, 60 lb Static Load, For Use With 20 sq-in CAT 5e, 15 sq-in CAT 6, 10 sq-in CAT 6A, CAT 7 and Fiber Optic Cables, Steel

Specifications

Application
Datacom and Low Voltage; Electrical Fixing and Fastening
Country of Origin
US
Finish
PG
Length1
12.6000
Material
Steel
Special Features

  • Cost effective alternative to expensive cable tray
  • Easy installation to beam flanges
  • Provides optimal support for high-performance data cable, up to and including cat 5e, cat 6, cat 6A, cat 7 and fiber optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on j-hooks provide proper bend radius support for high performance data cables
Standard
UL, CUL
Sub_Brand
ERICO
Type
CADDY CAT HP J-Hook with BC200 Beam Clamp
