NSI NSi 350LL2
NSI 350LL2
Kirby Risk #: 3133980
UPC: 66238102705, 662381027054, 00662381027054
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

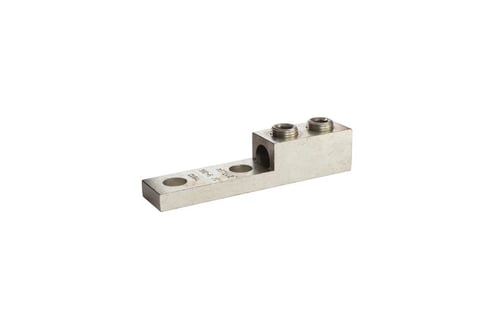

1 Port Heavy Duty Dual Rated Transformer Lug 350 MCM - 6 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
Modified Industry Description
350MCM-6AWG HEAVY DUTY TRANSORMER LUG
AD Description
NSI 350LL2 Dual Rated Heavy Duty Transformer Lug, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 6061-T6 Aluminum Alloy
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Silver
|
| Country of Origin |
USA
|
| Environmental_Conditions |
90 C
|
| Finish |
Aluminum
|
| Length1 |
5.3100
|
| Material |
Aluminum Alloy
|
| Number Of Conductors |
2
|
| Number_Of_Poles |
1
|
| Special Features |
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Transformer Lug-Heavy Duty
|
| Voltage Rating |
600
|
