Siemens Siemens 17EUE92BC


Description

Industry Description

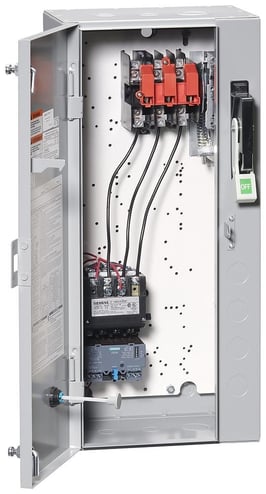

Non-reversing motor starter, Size 1 3/4, Three phase full voltage, Solid-state overload relay, OLR amp range 10-40A, 220 240/440 480VAC 60Hz coil, Combination type, 60A non-fusible disconnect, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

AD Description

Siemens 17EUE92BC SZ 1-3/4 Class 17 Full Voltage Heavy Duty Non-Reversing Combination Starter With 60 A, 600 V Non-Fusible Disconnect Switch, 190 to 220 VAC, 220 to 240 VAC, 380 to 440 VAC, 440 to 480 VAC Coil, 3 Poles, NEMA 1

Specifications

Country of Origin
US
Special Features

  • 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480 VAC, 25 hp at 575/600 VAC
  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage
  • Box lug line side, screw terminal load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
