Southwire Tool Southwire Tool 19703R02


Description

Industry Description

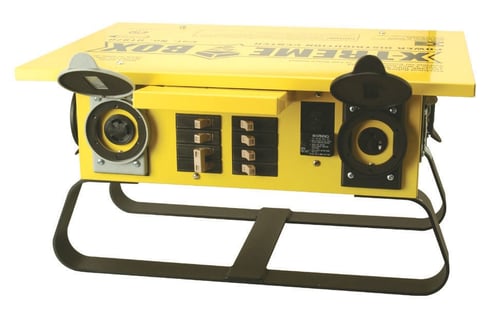

Made in the USA and included with (2) Southwire 50 Amp Portable GCFI Power Distribution Spider Boxes the portable temporary box will provide the user with an improved solution for electrical hookups on a job site or construction site. The power box features (6) 20 Amp GFCIs, circuit breaker protected Nema 5-20 straight blade receptacles with covers. Each box complies with OSHA and NEC standards and is ETL listed. Includes (2) 50A Spider Boxes.

Modified Industry Description

50A 125/250V YELLOW TEMP POWER DISTRIBUTION BOX

Specifications

Amperage Rating
50
Brand Name
Southwire Tool
Color
Yellow
Country of Origin
CN
Material
Galvanneal Steel
Special Features

  • (6) 20A GFCI and circuit breaker protected NEMA 5-20 straight blade receptacles with covers
  • 50A 125/250V California standard twist-to-lock receptacle
  • Carbon steel with black powder coat finish enclosure base
  • Individual automatic reset class A GFCI for each 20A receptacle ground fault protection
  • It is an economical solution for electrical hook up on the worksite
  • NEMA 5-20R 20A 125V straight-blade receptacles
  • NEMA L6-30R 30A 250V twist-to-lock receptacle
  • Provided by GFCI on each 20A receptacle over-voltage protection
  • The X-Treme box is a portable, flexible, rugged and reliable power distribution center designed to withstand harsh jobsite conditions
  • Thermoplastic on all receptacles receptacle covers
Type
Power Distribution Box
Voltage Rating
125/250
