Southwire Tool Southwire Tool XD10


Description

Industry Description

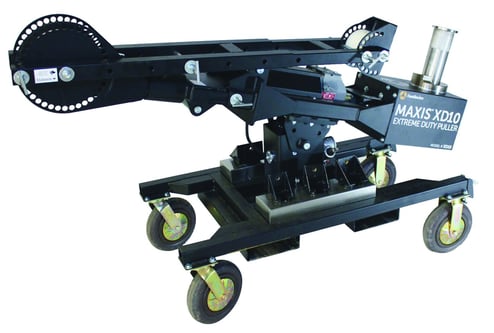

The Maxis® XD10 EXTREME Duty Cable Puller is an American-made cable puller, built to handle even the most extreme pulling conditions and up to 10,000 lb. of rope tension. The XD10 is able to withstand heavy loads with maximum output. This Cable Puller requires less force by the user when completing a pull. As well, the XD10 includes a gear-reduced hand crank to articulate the pivoting motion of the puller, which reduces the need for excessive lifting during the set up process.

Modified Industry Description

10000 LBS EXTREME DUTY CABLE PULLER

AD Description

Maxis™ 59190402 Cable Puller, 10000 lb Pulling, 11/10/9/8/7/21/18 fpm Pulling, Hardened Steel

Specifications

Application
Pulling
Brand Name
Southwire Tool
Capacity
10000
Country of Origin
USA
Load_Rating
10000
Material
Hardened Steel
Package_Quantity
1.000
Special Features

  • High capacity is powerful gear box designed to operate under heavy loads with maximum output
  • Self contained is ready to pull with no need for additional parts or equipment to use for set up
  • Single person set up and operation is quickly adapts from underground to overhead pulls
  • Smooth elevation control is operates with handle or 18 V cordless drill helping to eliminate any lifting
Speed
2
Sub_Brand
Maxis
Type
Cable Puller
