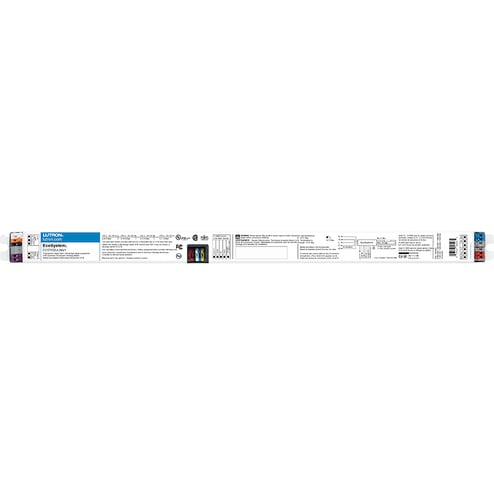

Lutron Lutron EC5T832JUNV1


Description

Industry Description

EcoSystem 10 percent 3-Wire and EcoSystem Digital Link Controlled T8 Linear and U-Bent 1 lamp, ballast factor of .85, J-can 32W/120/277V

Modified Industry Description

32W 1 U BULB T8 DIMMING BALLAST 120/277V

AD Description

EcoSystem® EC5T832JUNV1 Electronic Digital Dimming Ballast, F32/T8 Lamp, 32 W Lamp, 120/240/277 VAC, Programmed Rapid, 0.85 Ballast Factor

Vendor Description

EcoSystem® ballasts are part of a revolutionary lighting control system composed of digitally addressable electronic dimming ballasts, controls and sensors. EcoSystem® generates energy savings of 40 to 70%, improves occupant comfort and productivity and increases space flexibility.

Specifications

Amperage Rating
0.26/0.13/0.11
Application
Lighting Control
Ballast_Factor
0.85
Brand Name
Lutron
Color
White
Country of Origin
MX
DIMMABLE
True
Frequency_Rating
50/60
Lamp_Type
F32T8
Minimum_Starting_Temperature
50
Mounting
Within a flourescent fixture
Number_Of_Lamps
1
Power_Factor
0.95
Special Features

  • 0.26 A at 120 VAC, 0.13 A at 240 VAC, 0.11 A at 277 VAC
  • 100% performance tested at factory
  • 31.3 W at 120 VAC, 31 W at 240 VAC, 31.6 W at 277 VAC
  • Also compatible with Lutron® 3 wire fluorescent controls
  • Ballasts maintain consistent light output for differing lamp lengths
  • Ballasts maintain consistent light output for linear lamp lengths
  • Communicates status and sensor inputs over the EcoSystem® digital link
  • Continuous, flicker free dimming from 100 to 10%
  • Dims to 10% (5% for T4 ballasts)
  • EcoSystem® ballasts communicate via an EcoSystem® digital bus and connect directly to sensors and controls
  • End of lamp life protection circuitry ensures safe operation throughout entire lamp life
  • End-of-lamp-life protection circuitry ensures safe operation
  • Frequency of operation ensures that ballast does not interfere with infrared devices
  • Integral sensor connection provides power for and responds to one occupancy sensor, one photo sensor and one personal control input (infrared receiver or wallstation)
  • Lamps turn on to any dimmed level without flashing to full brightness
  • Low harmonic distortion throughout the entire dimming range
  • Low harmonic distortion throughout the entire dimming range maintains power quality
  • Non-volatile memory restores all ballast settings after power failure
  • Operating frequency ensures ballast does not interfere with IR devices
  • Programmed rapid start design ensures full rated lamp life
  • Programmed rapid start design ensures full rated lamp life while dimming and cycling
  • Protected from miswires of any input power to control lead or from lamp leads to each other and ground
  • Ultra quiet operation
  • Ultra-quiet operation
  • Without leads
Standard
UL, CSA, CEC Listed
Start_Type
Programmed rapid
Sub_Brand
Lutron
Thermal_Protection
Class P
Total_Harmonic_Distortion
<10%
Type
Electronic
Voltage Rating
120/240/277
Wattage
31.3/31/31.6
