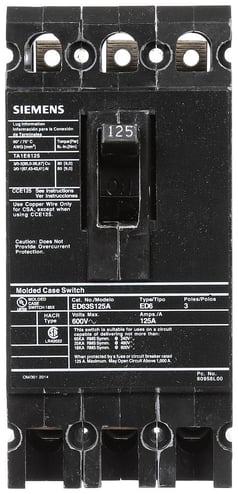

Siemens Siemens ED63S125A
Siemens ED63S125A
Kirby Risk #: 3113906
UPC: 78364321656, 783643216563, 00783643216563
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC ONLY TRIPUNIT. MOLDED CASE SWITCH (BREAKER) ED FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE 600V 1000A SELF-PROTECTIVE INSTANTANEOUS OVERRIDE. NON-INTERCHANGEABLETRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
Modified Industry Description
BREAKER ED 3P 125A 600A 18KA SW LD
AD Description
Sentron™ ED63S125A Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
125
|
| Application |
Molded Case Switch
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
4 in L x 6 in W x 7 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
ED6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18
|
| Length1 |
7.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/250 VDC
|
