NSI NSi ISPBS2/0
NSI ISPBS2/0
Kirby Risk #: 3108752
UPC: 66238178781, 662381787811, 00662381787811
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
2/0-14 AWG Polaris EDGE EPDM Rubber Pedestal Connector Splice. Polaris Edge are manufactured from high strength 6061-T6 aluminum alloy, providing premium electrical and mechanical performance. Radial tipped set screws reduce conductor strand damage, and the range taking design allows for many sizes and types of conductors- all in one connector. Encapsulated in EPDM rubber with a nominal thickness of 125 mils. Abrasion and chemical resistant. UV resistant. Will not support combustion. UL Listed 486D Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. For use with copper and/or aluminum cables.
Modified Industry Description
2/0 TO 14 AWG Polaris Edge EPDM Rubber Pedestal Connector SPLICE , 2 Port
AD Description

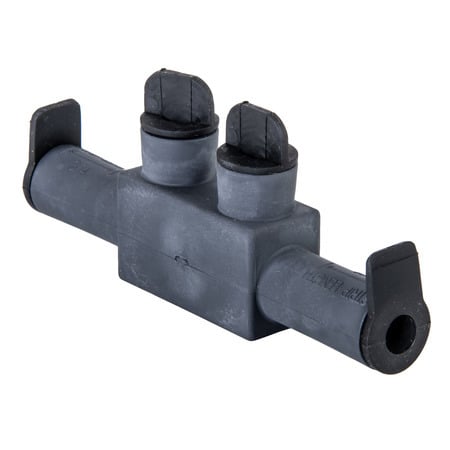

NSI Polaris™ ISPBS2/0 Submersible Splice Connector, 2/0 to 14 AWG, Aluminum Alloy
Specifications
| Application |
Wire Termination
|
|---|---|
| Brand Name |
NSi
|
| Color |
Black
|
| Conductor Range |
2/0-14
|
| Connection |
Mechanical
|
| Conductor Size |
2/0 to 14 AWG
|
| Country of Origin |
USA
|
| Finish |
Aluminum Alloy Encapsulated in Rubber
|
| Material |
Aluminum Alloy
|
| Number_Of_Holes |
2
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
L=.880 - W=5.05 - H=2.10
|
| Special Features |
|
| Standard |
ANSI C119.4, C119.1, UL486D
|
| Sub_Brand |
Polaris EDGE
|
| Temperature_Rating |
90 C
|
| Type |
Submersible In-Line Connector
|
| Voltage Rating |
600
|
| Wire_Type |
Class B & C
|
