Lutron Lutron DVSTV-WH


Description

Industry Description

Diva Dimmer - Gloss Finish, Fluorescent or LED Dimming with 0-10V Ballasts and Drivers, Single-pole/3-way, 120-277V/50mA/8A in white

Modified Industry Description

DIVA WHITE DIMMER, 3 WAY / 1 POLE, 8A, 0-10V

AD Description

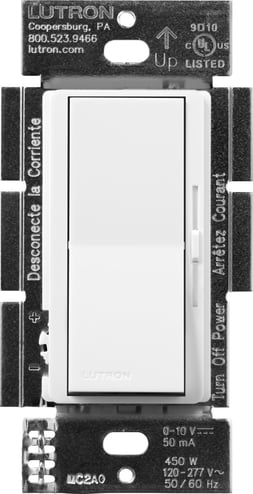

Lutron® Diva® DVSTV-WH 3-Way Dimmer Switch, 120 to 277 VAC, 50 mA/8 A, 1 Pole, On/Off Operation Mode, White

Vendor Description

A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. The paddle switch returns the lights to your favorite level.

Specifications

Actuator
Lutron
Amperage Rating
50 mA/8 A
Application
0-10V Dimmer for Led Drivers and Electronic Fluorescent Ballasts
Brand Name
Lutron
Color
White
Connection
Wire leads
Country of Origin
MX
Enclosure
UL cUL NOM
Environmental_Conditions
120V to 277V
Finish
Gloss
Frequency_Rating
50/60
Insulation
Class 1
Lamp_Type
Fluorescent/LED
Load
1
Material
Plastic
Mounting
8A
Number_Of_Poles
1
Operating_Cycles
Plastic
Operating_Temperature
4.69in (119mm) x 2.94in (75mm)
Size
4.69IN/119mm) X 2.94IN/75mm)
Special Features

  • 0-10 V control link controls third party fixtures
  • Adjustable high-end and low end trim for optimal dimming performance
  • Captive linear slider
  • Control provides dimming signal only
  • Dimmers feature built-in soft glow nightlight
  • For 0 to 10 VDC LED ballasts and drivers
  • For indoor use only
  • Full family of products for most lighting sources
  • Gloss finish
  • High end and low end trim user is adjustable for optimal performance
  • High-end and low end trim user adjustable for optimal performance
  • Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
  • Patented switching technology extends product lifetime
  • Power failure memory should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored
  • Precise color matching
  • Works with all ballasts and drivers that provide a current source compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver loads of 8 A steady state current
Standard
UL cUL NOM
Sub_Brand
Lutron
Type
3-Way
Voltage Rating
120 to 277
Wattage
2216 W
