Hubbell Hubbell HBL14W47A


Description

Industry Description

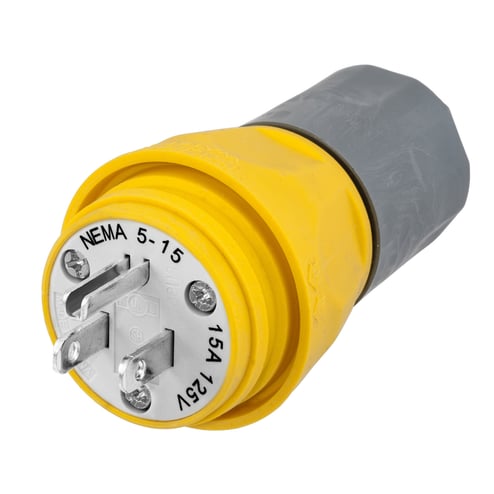

Hubbell Wiring Device Kellems, Straight Blade Devices, WatertightSeries, Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, YellowElastomer, Version 2

Modified Industry Description

15A 125V - YELLOW ELASTO GRIP WATRTIGHT MALE PLUG, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems Elastogrip® HBL14W47A Standard Watertight Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Specifications

Amperage Rating
15
Application
Watertight Device
Brand Name
Hubbell
Color
Yellow
Connection
Screw Terminals
Conductor Size
#14AWG to #12AWG
Cord_Type
All Portable
Country of Origin
PR
Environmental_Conditions
Watertight
Material
Elastomeric/Composite
Mounting
Cord Mounted
NEMA_Configuration
5-15P
NEMA_Rating
5-15P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Poles
2
Size
Standard Sized
Special Features

  • 18 to 12 AWG stranded copper conductor
  • Certified for current interrupting at full rated current
  • Color coded Kellems GOTCHA® rings provide increased cord retention
  • Cord mounted
  • Corrosion resistant
  • Grounding plug
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Multiple drive U-drive fast lead body assembly screws
  • Neoprene bushing keeps water and dust out
  • Nylon blade holder and cord clamp, polycarbonate retainer, brass contact blade and ground screw copper alloy ground contact blade, nickel plated brass terminal screw
  • Thermoplastic elastomer housing resists weathering caused by ultraviolet rays and ozone better than rubber
  • Three separate transparent wiring chambers allow for visual inspection
  • Withstands 2000 VAC dielectric voltage
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Straight Blade
Voltage Rating
125
