NSI NSi SS410

Industry Description

Tork Digital Interval Timer 3-Way APPLICATIONS: Offices, Meeting Rooms, Energy Code Timed Override, Exhaust Fans, Equipment Rooms, Closets, Storage Spaces. Multiple circuits with power packs- low voltage for class 2 wiring. FEATURES: COLOR: White (single gang decorator wall plate included) ENERGY CODE PRESET: 2 hour timing for Title 24 and IECC (default) 4 hour timing for ASHRAE 90.1 (with quick dip switch adjustment) PROGRAMMABLE: 5 minutes to 25 hour: 5 minute steps from 5 minutes to 1 hour 10 minute steps from 1 to 4 hours 30 minute steps from 4 to 12 hours 1 hour steps from 12 to 24 hours SCROLL LOCK: Limits user adjustment to a maximum equal to the preset time. FLASH WARNING: Optional one second flicker turns load OFF/ON 2 minutes end of time cycle BEEPER WARNING: Optional beep with sound every 15 seconds during last 2 minutes of the time cycle TAMPER RESISTANT: Wall plate locks access to dip switch adjustments THREE-WAY & MULTI-WAY: Three-way compatible with existing switch. Multi-way requires momentary switches at the additional locations. Maximum distance 100 feet DISPLAY: Backlit LCD Display WIRING: No neutral required. CONTACT RATINGS: VOLTAGE: 24VDC or 24VAC 50/60 Hz RATING: 1A Max MINIMUM LOAD: 1 ma @ 5V WIRE SIZE: #18 AWG OPERATING TEMPERATURE: 32 degrees F to + 104 degrees F (0 degrees C to + 40 degrees C)

Modified Industry Description

Interval Wall Timer 24 Hour Maximum 3-Way 24V White

AD Description

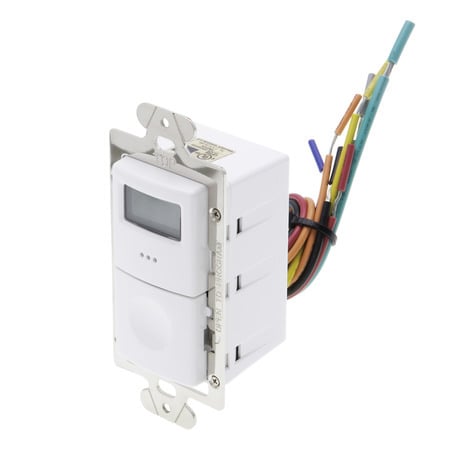

NSI Tork® SS410 3-Way Auto Off Interval Timer, 24 hr Time Setting, 24 VAC/VDC, SPDT Contact Form, 1 Poles
