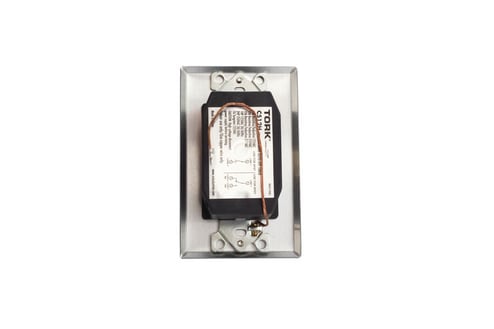

NSI NSi C512H


Description

Industry Description

Tork 12 Hour Twist Timer No Hold- Metal Wallplate APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: Brushed-metal aluminum. VARIABLE TIMING: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model. HOLD FEATURE: No Hold EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating. SWITCH TYPE: SPST WALL PLATE: Includes real metal wall plate with screw mounting, to add extra security for commercial applications. CONTACT RATINGS: VOLTAGE: 125/250/277VAC 50/60Hz RESISTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A INDUCTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A TUNGSTEN: 125 VAC Rating: 7A MOTOR: 125VAC Rating: 1HP 250VAC Rating: 2HP

Modified Industry Description

12 HR TWIST TIMER WITH METAL

AD Description

NSI Tork® C512H Auto Off Interval Mechanical Spring Wound Timer, 12 hr Time Setting, 125/250/277 VAC, 1 hp/2 hp, SPDT Contact Form, 1 Poles

Specifications

Action
SPST
Amperage Rating
20/10
Application
Ventilating Fans-HVAC-Whirlpools-Self Storage-Motors-Pump Control
Base
Wall Plate
Country of Origin
CHN
Dimensions
5 in H x 3 in W
Enclosure
Single Gang Wall Plate
Environmental_Conditions
32-122 F
Frequency_Rating
50-60
Horsepower
1, 2
Length1
1.2310
Mounting
Single Gang Wall Plate
Mounting_Type
Wall
Number_Of_Poles
1
Operating_Temperature
32-122 F
Phase
1
Series
C Series
Size
H=5.00 - W=3.00
Special Features

  • 1 hp at 125 VAC/2 hp at 250 VAC
  • 50/60 Hz frequency
  • 7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
  • Contact initiation
  • Interval timer
  • Metal brushed aluminum
  • No hold commercial grade in wall time switch
  • No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
  • Single gang wall plate enclosure
  • Single phase
  • Twist knob for time on setting, Time on lengths from 15 min to 12 hr vary by model
Standard
cULus
Sub_Brand
NSi
Temperature_Rating
32 to 122
Type
Auto Off Interval Mechanical
Voltage Rating
125/250/277
