Siemens Siemens LMXD63B700
Siemens LMXD63B700
Kirby Risk #: 3093135
UPC: 78364330413, 783643304130, 00783643304130
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER LMD FRAME WITH STANDARD BREAKINGCAPACITY. 700A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 16.0 x 4.50.
Modified Industry Description
BREAKER LMD 3P 700A 600V 25KA FX NL
AD Description

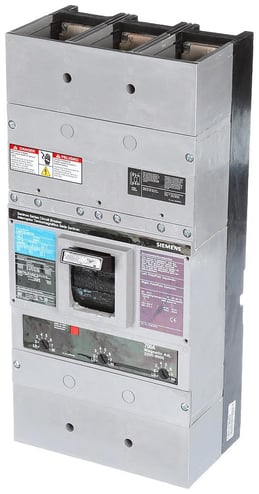

Siemens Sentron™ LMXD63B700 Type LMXD6 Molded Case Circuit Breaker, 600 VAC, 700 A, 25 kA Interrupt, 3 Poles, Non-Interchangeable Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
700
|
| Application |
Standard 40C Breaker
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
6.9 in L x 10.1 in W x 18.6 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LMD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
18.6000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
LMXD6
|
| Voltage Rating |
600
|
