Appleton Appleton GIB600L4AC


Description

Industry Description

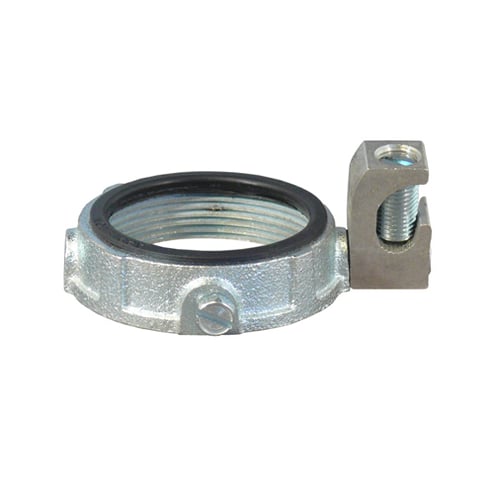

Grounding Bushing, Type Threaded, Trade Size 6 Inch, Wire Size 14 AWG Solid to 4 AWG Standard, Lug Type Lay-In, Aluminum, Conductor Material Copper/Aluminum, Throat Type Insulated, Diameter 7.25 Inch, Height 1.31 Inch, Material Zinc Plated Malleable Iron Body, Zinc Plated Steel Clamping Screw/Set Screw, Approval UL 514B, CSA C22.2, Used On Threaded Rigid Metal Conduit/IMC, Used with a Locknut to Terminate Rigid Metal Conduit/IMC Conduit to a Box or Enclosure

Modified Industry Description

6 IN INSULATED GROUNDING BUSHING ALUMINUM

Specifications

Brand Name
Appleton
Country of Origin
MX
Finish
Zinc Plated
Material
Malleable Iron
Special Features

  • Can be used with a locknut to terminate conduit at an enclosure
  • Fasten and ground threadless rigid metal conduit to an enclosure
  • Insulating liner material is self extinguishing
  • Lug used to connect bonding jumper to a neutral bus bar
  • Lugs not sold separately
  • The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
Temperature_Rating
302
Trade_Size
6
