Lutron Lutron MS-Z101-IV


Description

Industry Description

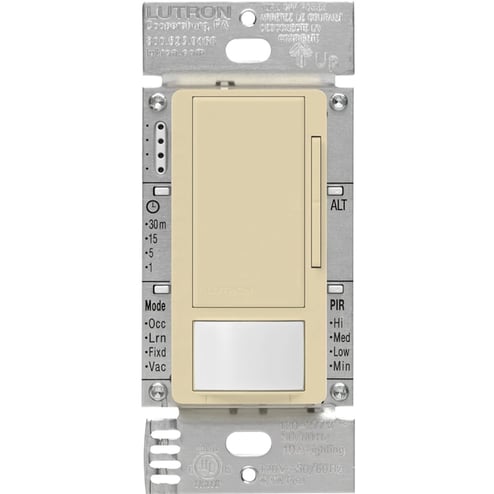

Maestro 0-10V dimmer occupancy/vacancy sensor, passive infrared, 8A fluorescent ballast or LED driver, 120-277V, in ivory

Modified Industry Description

MAESTRO 0-10V DIMMER/SENSOR COMBO IVORY

AD Description

Maestro® MS-Z101-IV 3-Way Occupancy Vacancy Sensor With 0 to 10 VAC Dimmer, 120 to 277 VAC, Passive Infrared Sensor, 900 sq-ft Coverage, 180 deg, Wall/Box Mount

Vendor Description

Lutron® Maestro™ 0 to 10 V dimmer sensors are lighting controls with passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. The Maestro™ 0-10 V dimmer sensor combines a Maestro™ 0 to 10 V dimmer with an occupancy orvacancy Sensor.

Specifications

Amperage Rating
8
Application
Lighting Control
Body
Plastic
Brand Name
Lutron
Color
Ivory
Country of Origin
CN
Coverage1
900
Enclosure
Plastic
Environmental_Conditions
0 to 90
Finish
Gloss
Load
8 A/0-10VDC
Mounting
Wallbox
Mounting_Type
Wall/Box
Operating_Temperature
0 to 40 degrees Celsius
Sensor
True
Special Features

  • 0 to 10 VAC dimmer and vacancy PIR sensor, single pole/multi-location, single pole/multi-location, 8 A capacity
  • 1/5/15/30 min (Adjustable) time delay
  • 400 sq-ft minor motion coverage
  • 8 A(electronic fluorescent ballast/LED driver), 1/6 hp at 4.4 A(fan)
  • Adaptive switching algorithm for extended relay life
  • Adjustable settings for auto-on light level (occupied level) 100%, 50%, last light level or locked preset light level
  • Combined benefits of 0 to 10 VAC dimming and PIR occupancy/vacancy sensing to provide optimized dimming performance
  • Controls 0 to 10 VAC electronic fluorescent ballasts, 0 to 10 V electronic LED drivers loads
  • Controls 0 to 10 VDC electronic fluorescent ballasts or LED driver load types
  • High end trim and low end trim to adjust maximum and minimum light levels
  • High, medium, low, minimum adjustable sensitivity level
  • No neutral required, comes in occupancy/vacancy mode or vacancy only
  • Off warning fades lights to off over a period of 10 s
  • Passive infrared motion detection with exclusive Lutron® XCT™ technology for fine motion detection
  • Selectable dimming curve linear or square law
  • Smart ambient light detection (ALD)
  • Superior sensing with Lutron®'s XCT sensing technology
  • Up to 30 x 30 ft (9 x 9 m) [900 sq-ft (81 sq-m)] major motion coverage and 20 x 20 ft (6 x 6 m) [400 sq-ft (36 sq-m)] minor motion coverage
Standard
UL, cUL, Title 20/24 certified
Sub_Brand
Maestro
Supply_Voltage
120 to 277
Temperature_Rating
32 to 104
Type
3-Way
Voltage Rating
120 to 277
