Thomas & Betts Thomas & Betts STE075GRL


Description

Industry Description

Star Teck Extreme aluminum jacketed fitting. Hub size of 3/4 inch. with Bond Star grounding locknut Range over jacket from 0.860 - 1.205 inch.

Modified Industry Description

AL EXT FTG W G LN-TECK CABLE-3/4 IN

AD Description

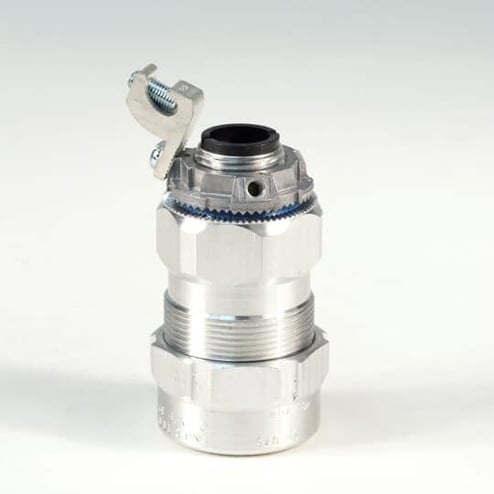

T&B® Fittings Star Teck Extreme® STE075GRL Cable Fitting With Bond Star Grounding Locknut, 3/4 in Trade, 0.86 to 1.205 in Cable Openings, Aluminum

Vendor Description

The Star Teck Extreme® fitting was the industry's first range-taking teck fitting. This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried. Now one Star Teck Extreme® fitting could cover the range of three conventional Star Teck fitting hub sizes. With the Star Teck Extreme® fitting also came the invention of removable armor stops, another feature that has since become an industry standard.

Specifications

Color
Silver
Country of Origin
CA
Length1
9.6200
Material
Aluminum
Size
3/4 inch
Special Features

  • Built-in jacket stripping gauge on each fitting
  • Dual sets of grounding devices ensure 360 degree long term dependable grounding
  • Durable and reusable with funnel entry for easy cable insertion
  • Exclusive power grip provides a grip that high up on the cable not on the first convolution so jacket strip length of cable is not critical
  • Has grooves for screwdriver installation, and flats for a wrench
  • It makes immediate contact with the cable during insertion
  • Low profile gland nut fits tight spaces
  • Power grip grounding ring is non-magnetic stainless steel
  • Sharp biting teeth provide superior electrical bonding and allow corrosive liquids to drain away quickly
Standard
UL E38947, CSA 23086
Sub_Brand
T&B Fittings
Type
Teck Cable Fittings
