Thomas & Betts Thomas & Betts LR75M


Description

Industry Description

Series 35 Right Side Opening 3/4 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

Modified Industry Description

3/4 INCH SERIES 35 CONDUIT BODY

AD Description

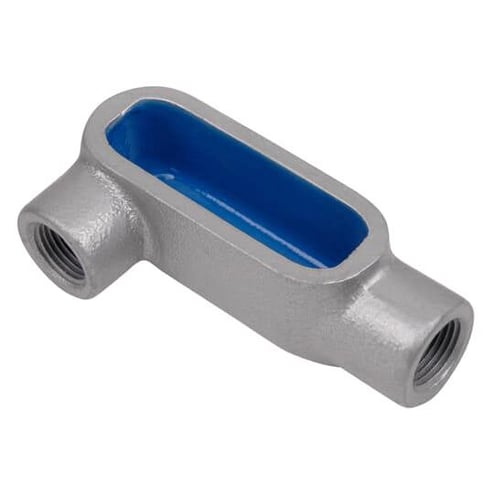

T&B® LR75M 35 Series Type LR Conduit Body, 3/4 in Hub, Form 5 Form, 7.5 cu-in Capacity, Malleable Iron, Zinc Plated with Aluminum Acrylic Coated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Connect Conduit Sections
Color
Gray
Country of Origin
CN
Dimensions
5-3/8 in L x 2-1/4 in W x 1-11/16 in H
Finish
Zinc Plated/Aluminum Acrylic Painted
Length1
9.0000
Material
Malleable Iron
Series
35 Series
Special Features

  • Act as mounting outlets for wiring devices and lighting fixtures
  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Make 90 deg bends in conduit runs
  • Provide access to conductors for maintenance and future system changes
  • Provide easy access for splices in branch conductors
  • Right side access opening
  • Serve as pulling outlets during conductor installation
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
Standard
UL E2969
Sub_Brand
Thomas & Betts
Type
Type LR
