Thomas & Betts Thomas & Betts 54906BE06


Description

Industry Description

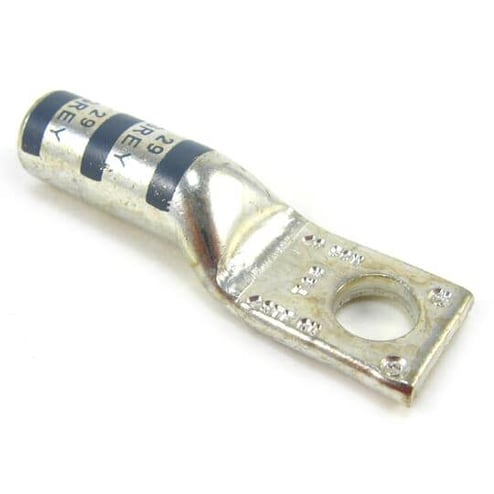

Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size #4 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 29, Die Color Code Gray

AD Description

Color-Keyed® 54906BE06 54900 1-Hole Compression Connector Lug, 4 AWG Stranded Copper Conductor, Die Code: 29, 3/8 in Stud, Copper

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Color
Gray
Conductor Type
Stranded Copper
Conductor Size
4
Country of Origin
MX
Insulation
None
Length1
3.2500
Material
Copper
Series
54900
Special Features

  • 1/4 in hole center to end
  • Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
  • Connection by compression
  • Connectors have colored bands or colored dots that correspond to color markings on the dies
  • High conductivity wrought copper construction
  • High quality connection at a low installed cost
Standard
UL E9809
Sub_Brand
Color Keyed
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
