Thomas & Betts Thomas & Betts 54854BEPH
Thomas & Betts 54854BEPH
Kirby Risk #: 3084864
UPC: 78621039184, 786210391847, 00786210391847
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

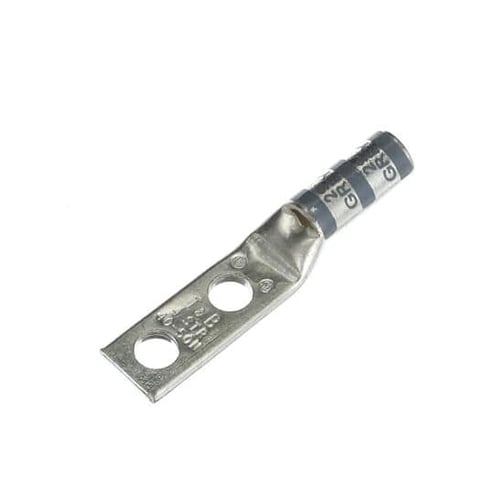

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size #4 AWG, 1/4 Inch Bolt Size, 5/8 Inch Hole Spacing, Tin Plated, Die Code 29, Die Color Code Gray
Modified Industry Description
CONNECTOR TWO HOLE LUG
AD Description
Color-Keyed® 54854BEPH 54800 2-Hole Compression Lug, 4 AWG Copper Conductor, Die Code: 29, 1/4 in Stud, Copper
Vendor Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Color |
Gray
|
|---|---|
| Conductor Type |
Copper
|
| Conductor Size |
4
|
| Country of Origin |
MX
|
| Insulation |
None
|
| Length1 |
3.5000
|
| Material |
Copper
|
| Series |
54800
|
| Special Features |
|
| Sub_Brand |
Color-Keyed
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
