Philips Advance Philips Advance IZT2S54D35M
Philips Advance IZT2S54D35M
Kirby Risk #: 3076126
UPC: 78108713215, 781087132159, 781087132142, 00781087132159
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Philips Advance
Description
Industry Description
BALLAST, ELECTRONIC, MARK VII, DIMMING, STARTING METHOD: PROGRAMMED START, LAMP TYPE: T5 HO 54W, FREQUENCY: 50/60, VOLTAGE RATING: 120-277, NUMBER OF LAMPS: 2, DIMMING, HIGH POWER FACTOR
Modified Industry Description
ELE DIMMING BALLAST (2) F54T5HO
AD Description

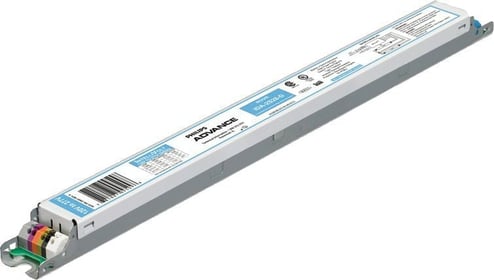

Advance Mark 7 0-10V IZT2S54D35M D-Can Dimmable Fluorescent Ballast, T5/HO Lamp, 54 W, 120 to 277 VAC, Programmed, 1 Ballast Factor
Vendor Description
The MARK 7 0-10V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, MARK 7 0-10V ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensors and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
Specifications
| Amperage Rating |
0.38 to 0.91
|
|---|---|
| Application |
Lighting Luminaire Component
|
| Ballast_Factor |
1
|
| Brand Name |
Philips Advance
|
| Country of Origin |
USA
|
| DIMMABLE |
True
|
| Frequency_Rating |
50/60
|
| Lamp_Type |
F54T5/HO
|
| Material |
Metal
|
| Minimum_Starting_Temperature |
10
|
| Number_Of_Lamps |
2
|
| Power_Factor |
0.98
|
| Special Features |
|
| Start_Type |
Programmed
|
| Sub_Brand |
Philips Advance
|
| Thermal_Protection |
Class P
|
| Total_Harmonic_Distortion |
10%
|
| Vendor |
Signify
|
| Voltage Rating |
120 to 277
|
| Wattage |
16 to 118
|
