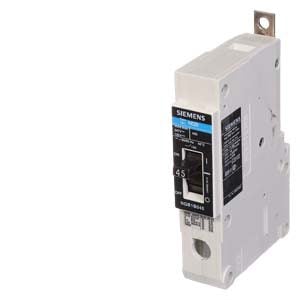

Siemens Siemens NGB1B045B
Siemens NGB1B045B
Kirby Risk #: 3072327
UPC: 78364341401, 783643414013, 00783643414013
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
BREAKER NGB 1P 45A 347V 14KA LD LUG W/LOAD LUGS INDIV PK
Modified Industry Description
BREAKER NGB 1P 45A 347V 14KA LD LUG
AD Description
Siemens NGB1B045B Low Voltage Molded Case Circuit Breaker, 347 VAC, 45 A, 14 kA Interrupt, 1 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Specifications
| Amperage Rating |
45
|
|---|---|
| Application |
Industrial
|
| Country of Origin |
MX
|
| Frame |
NGB
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14
|
| Length1 |
4.2000
|
| Mounting_Type |
Panel
|
| Number_Of_Poles |
1
|
| Phase |
1-Phase
|
| Special Features |
PANELBOARD MOUNT/BULK PACK
|
| Standard |
UL/CSA/IEC/NOM
|
| Temperature_Rating |
50
|
| Type |
Low Voltage
|
| Voltage Rating |
347
|
