Burndy Burndy YAV102TC1090
Burndy YAV102TC1090
Kirby Risk #: 3069286
UPC: 78181002212, 781810022122, 00781810022122
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Cu terminal, 2 Holes/W/insp W, #14-#10 STR,#12-#10 SOL, #10" stud, Tin - Electro Plated.
Modified Industry Description
CU TERMINAL 2 HOLE 14 - 10 AWG 10 STUD
AD Description

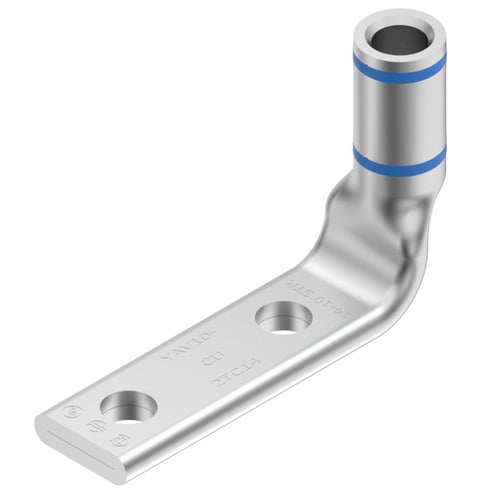

BURNDY® HYLUG YAV102TC1090 YAV-2TC 2-Hole Compression Terminal With Inspection Window, 14 to 10 AWG Solid/Stranded Copper Conductor, #10 Stud, Copper
Specifications
| Application |
For Code Conductor
|
|---|---|
| Conductor Type |
Solid/Stranded Copper
|
| Conductor Size |
14 to 10
|
| Country of Origin |
US
|
| Length1 |
1.3300
|
| Material |
Copper
|
| Series |
YAV-2TC
|
| Special Features |
Two hole copper terminal, tin-electro plated
|
| Standard |
RoHS Compliant
|
| Sub_Brand |
Burndy
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
