Southwire Tool Southwire Tool 146500136

Name: Southwire Tool 146500136
Brand: Southwire Tool
SKU: 3016669
Price: 85.32 USD
Availability: InStock

Southwire Tool 146500136

Kirby Risk #: 3016669

UPC: 02409890265, 024098902657, 00024098902657

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire Tool

Description

Industry Description

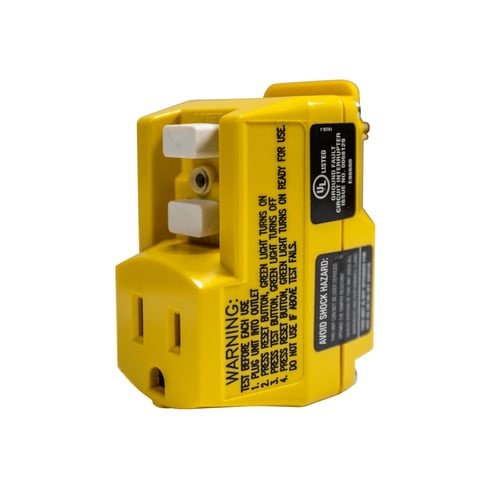

YELLOW 120V/15A SINGLE OUTLET GFCI ADAPTER, BOOTED BUTTON

Modified Industry Description

Right Angle GFCI Adapter - Plug in

Amperage Rating	15
Application	Construction
Connection	NEMA
Country of Origin	USA
Frame	right angle
Frequency_Rating	50/60 Hz
Interrupt_Rating	15
Length1	45.4135
Number_Of_Poles	1
Phase	1
Special Features	1500 VRMS - 1 min insulation voltage 2.65 in H x 1.75 in W x 1.975 in D 3-wire, 4 Ohm typical grounded neutral 3000 operations minimum endurance 314 J MOV 4 to 6 ma trip level, mechanical indicator 5% maximum trip level variation effect of 10 A turn DC shock on ground fault trip 50/60 Hz frequency, 3 kV ringwave test and 4kv/2kA surge immunity test voltage surge withstand Available in yellow with button boots or white Less than 25 ms trip response time for ground fault and grounded neutral trip Mechanical power on indicator Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz radio frequency noise susceptibility Provides compliance with national electric code (NEC 2008) article 590.6 for temporary installations Six times rated overload current To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage Yellow color
Standard	UL1449
Sub_Brand	Surge Guard
Temperature_Rating	-35 to 66
Type	Adapter
Voltage Rating	120
