Fluke FLUKE FLK-3000 FC IND


Description

Industry Description

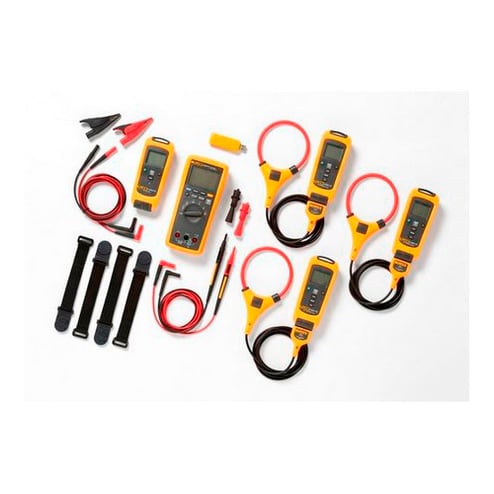

Start building tomorrow’s test tool system today with the Fluke 3000 FC Digital Multimeter. The new Fluke Connect system of test tools communicates with the new Fluke Connect mobile application on your Android™ or iOS smart device, allowing you to share live measurements, monitor readings from safe distances, and get your job done easier than ever before. The wireless digital multimeter functions as the mobile hub, displaying readings from up to three module tools simultaneously from up to 20 m away. The Fluke Connect modules also give you the flexibility to build your wireless test tool system how you want when you want. Fluke 3000 FC Industrial System includes multimeter, three iFlex clamp modules, one ac voltage module and accessories.

Modified Industry Description

Wireless Digital Multimeter, 1000V DC/AC, 400MA, 50 MOhm

Specifications

Accuracy
1% + 3 (45 Hz to 500 Hz), 2% + 3 (500 Hz to 1 kHz) for AC Voltage; (9% + 2), (0.15% + 2) for DC Voltage
Amperage Rating
400
Application
True-RMS Digital Multimeter for troubleshooting and repair of electrical and electronic systems
Battery
Three AA
Battery_Type
(3) AA Alkaline, NEDA 15A IEC LR6 A
Brand Name
FLUKE
Capacitance
9999
Country of Origin
UKN
Dimensions
8.14 in L x 3.68 in W x 1.87 in H
DimensionsInches
1.87 (H) in x 3.68 (W) in x 8.14 (L) in
Diode_Test
True
Display
LCD
Enclosure
Hard Plastic
Frequency_Rating
99.99
Material
Plastic
Measuring_Range
1000 VDC/VAC, 400 mA, 50 MOhm
Model
FLK-3000 FC
Package_Quantity
1
Peak_Hold
True
Resistance
50
Safety_Rating
CAT III 1000 V, CAT IV 600 V
Special Features

  • 250 hr minimum battery life
  • Be in multiple places at once, reducing the risk of arc flash by separating yourself from hazardous measurement situations
  • Capacitance range 1000 nF, 10 uF, 100 uF with accuracy of (1.2% 2), 9999 uF with accuracy of 10% typical
  • Capture readings at different intervals, with user set recording intervals from one second to one hour
  • Communicate with your iOS (4S and later) and Android™ (4.3 and up) devices with the new Fluke® connect mobile application
  • Data is saved to a PC in .csv format (comma separated variable) file format for easy viewing at your convenience
  • Fluke® 3000 FC meets measurement category 1000 V CAT III and CAT IV 600 V safety standards, AC current clamp module and AC/DC current clamp module 600 V CAT III, AC voltage module, DC voltage module and iFlex® clamp meters 600 V CAT IV/1000 CAT III
  • Frequency range 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz with accuracy of (0.1% 1)
  • Future proof your investment by adding functionality to the 3000 FC DMM when you need it
  • Have all asset test results at your fingertips after downloading to your PC for future asset performance tracking and reliability programs
  • Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules
  • Let your team see what you see in an instant with ShareLive™ video call
  • No more writing data down, capture up to 65000 sets of min/max/AVG readings over single or multiple logging sessions using the recording capability
  • Resistance range - 600 Ohm with accuracy of +/-(0.5% 2), 6 kOhm, 60 kOhm, 600 kOhm with accuracy of +/-(0.5% 1), 50 MOhm with accuracy of 1.5% 3
  • Save money and time by taking multiple measurements simultaneously
  • See multiple measurements on one screen at one time (DMM and three modules, Ti200 300/400 and five modules)
  • Send and communicate test data to your manager and coworkers to assess abnormal system response in seconds
  • View results on your computer with the PC adapter
  • Wireless technology allows connectivity between your phone, PC and all Fluke® connect enabled test tools
  • Work with fewer interruptions by recording multiple sessions before downloading
Standard
Electromagnetic compatibility EMI, RFI, EMC, RF---EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489; V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249; FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE; Safety compliance---ANSI/ISA 61010-1 / (82.02.01): 3rd edition; CAN/CSA-C22.2 No 61010-1-12: 3rd edition; UL 61010-1: 3rd edition; IEC/EN 61010-1:2010; Certifications---CSA, FCC, CE; Ingress Protection (IP) rating IP54; Pollution Degree 2
Sub_Brand
Fluke
Temperature_Rating
-10 to 50
Type
Wireless
Voltage Rating
600 mVAC/VDC, 600 VAC/VDC, 600 VAC/VDC, 600 VAC/VDC, 1000 VAC/VDC
