General Cable General Cable C0454A.38.10


Description

Modified Industry Description

18/2 TRAY SHIELDED CABLE

AD Description

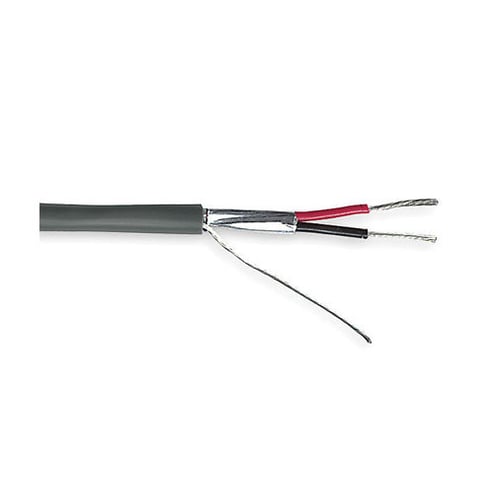

Carol® C0454A.38.10 Type PLTC Foil Shielded Tray Cable, 300 VAC, (2) 18 AWG Stranded Tinned Copper Conductor, 500 ft Reel L

Vendor Description

Our unarmored Type PLTC/ITC cables offer excellent flexibility for use in audio, intercom, control, energy management and alarm circuits and are permitted for use in class I, division 2 industrial hazardous locations per NEC.

Specifications

Brand Name
General Cable
Color
Gray
Conductor Material
Fully annealed stranded tinned copper
Conductor Size
18 AWG
Insulation_Material
PVC
Jacket_Material
PVC
Number Of Conductors
2
Shield
True
Special Features

  • 0.015 in nominal insulation thickness
  • 0.037 in nominal jacket thickness
  • 22 thru 12 AWG fully annealed stranded tinned copper per ASTM B-33
  • 41.5 pF ft capacitance between conductors, 92.5 pF ft capacitance between one conductor and other conductors connected to shield
  • Fully annealed stranded tinned copper per ASTM B-33
  • Good weather resistance
  • Premium-grade, color-coded PVC insulation
  • Sunlight resistant PVC jacket
  • UL tray cable rated
Temperature_Rating
-20 to 105
Type
Type PLTC Foil Shielded
Voltage Rating
300
