Burndy Burndy YA34LNT12
Burndy YA34LNT12
Kirby Risk #: 3002845
UPC: 78181027021, 781810270219, 00781810270219
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

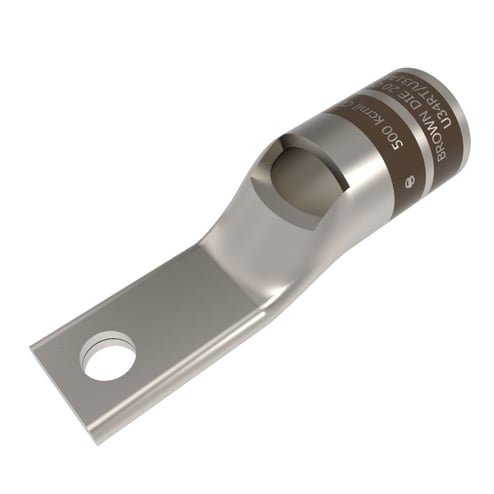

Copper Compression Lug, Narrow Tongue, 1 Hole w/ Inspection Window, 500 kcmil, 1/2" Stud, Short Barrel, Tin Plated.
AD Description
BURNDY® HYLUG YA34LNT12 YA-L-NT 1-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: 20, 1/2 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Brown
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
500
|
| Country of Origin |
US
|
| Length1 |
3.6500
|
| Material |
Copper
|
| Series |
YA-L-NT
|
| Special Features |
|
| Standard |
UL 486A-486B
|
| Sub_Brand |
TERMINALS, HYLUG
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
