Greenlee Greenlee EK06ATCL11


Description

Industry Description

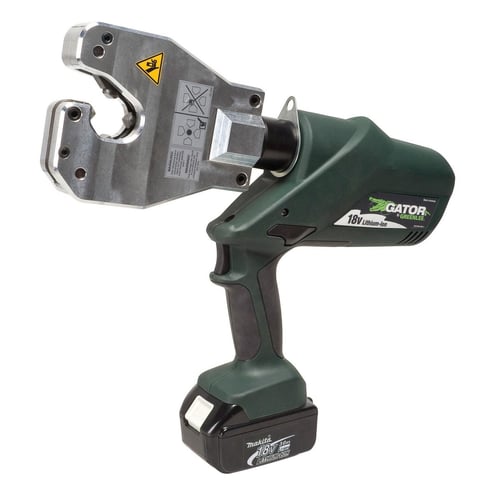

Gator® Battery Powered Quad-Point Dieless Crimping Tool. Open rubber covered head dieless, 120V charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Utilizes four indentors to make the crimp. Flip-top style uses a pull pin to open head for easy removal from the connector. U.S. Patents #6,206,663 and #6,065,326.

Modified Industry Description

CRIMP TOOL, INSUL DIELESS AT BAT

AD Description

Greenlee® Gator® EK06ATCL11 Dieless Quad Point Cordless Battery Powered Crimp Tool With 120 V Charger, 6 AWG to 500 kcmil Cu Lug/Splice, 6 AWG to 400 kcmil Al Lug/Splice Crimping, 55 kN Crimping, 18 V, Li-Ion Battery, 14 in OAL

Specifications

Country of Origin
DE
Length1
23.0000
Series
EK06ATCL
Special Features

  • Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
  • Crimping head rotates 350 deg
  • Flip-top style uses a pull pin to open head for easy removal from the connector
  • Forward handle position improves tool balance
  • Greenlee® battery powered crimping tools now use bio-degradable oil
  • Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • LED light provides the operator with the battery charge and tool maintenance status
  • LED work light illuminates dark work areas
  • One trigger controls all tool functions
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
  • Tools automatically retract when the crimping cycle is complete
  • Two-stage hydraulic system provides fast advance and power speed, saving time
  • U.S. Patents #6,206,663 and #6,065,326
  • Utilizes four indentors to make the crimp
Standard
C/US UL Listed
Sub_Brand
Greenlee
Type
Dieless Quad Point Cordless
Voltage Rating
18
