Panduit Pan-Net Panduit Pan-Net UTP28SP5MYL


Description

Industry Description

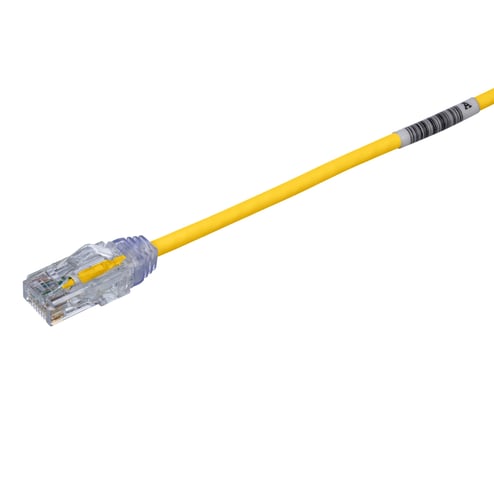

Category 6 Performance, 28 AWG UTP patch cord with TX6™ Modular Plugs on each end, 5 meters.

AD Description

Panduit® TX6-28™ UTP28SP5MYL CM/LSZH/UTP Small Diameter Patch Cord With Modular Plugs, Cat 6/Class E, 28 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 5 m L Cord

Vendor Description

Cat 6/Class, UTP, small diameter patch constructed 28 AWG, unshielded, twisted, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch offered multiple colors for design flexibility.

Specifications

Application
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit
Color
Yellow
Conductor Size
28
Country of Origin
MUL
Length1
11.0000
Outside_Diameter
0.15
Special Features

  • 100% performance tested for wire map, NEXT and return loss
  • Flexible stranded cable
  • Identification label
  • Integral pair manager
  • Meets individual length and color coding requirements for greater system flexibility
  • Patented tangle-free latch on modular plugs
  • Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords
  • Robust construction
  • Smaller diameter, flexible cable design
Standard
Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80
Sub_Brand
Pan-Net?®
Temperature_Rating
167
Type
PATCH CORD
