Panduit Pan-Net Panduit Pan-Net UTP28CH6GR


Description

Industry Description

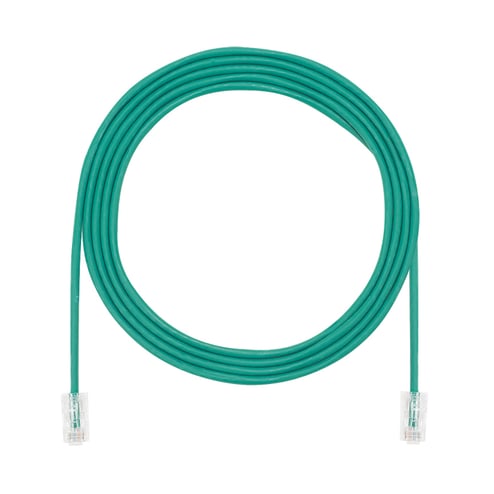

Category 5e performance, 28 AWG UTP patch cord with Pan-Plug™ Modular Plugs on each end. Green. 6 ft.

Modified Industry Description

Copper Patch Cord, Cat 5e (SD), 28

AD Description

Panduit® PanNet® TX5e-28™ UTP28CH6GR U/UTP Class D Small Diameter Patch Cord, Cat 5e, 28 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 6 ft L Cord

Vendor Description

Category 5e/class D, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.

Specifications

Application
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot_Type
Modular Plug
Brand Name
Panduit Pan-Net
Color
Green
Conductor Material
Copper
Conductor Size
28
Cord_Length
6
Country of Origin
MUL
Jacket_Material
High-Density Polyethylene
Number Of Conductors
RJ45 8(8)
Package_Quantity
1
Plug_Type
Modular Plug
Special Features

  • 0.15 in OD
  • 100% performance tested for wire map, NEXT and return loss
  • 28 AWG UTP patch cord with Pan-Plug® modular plugs on each end
  • Centered de-embedded plug
  • Integral pair manager optimizes performance and consistency by reducing untwist at plug
  • Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
  • Robust construction
  • Smaller diameter, flexible cable design
  • UL94 V-0 rated clear polycarbonate housing plug
Standard
PoE,PoE+
Sub_Brand
Panduit
Temperature_Rating
14 to 167
Type
Class D Small Diameter
Width_2
7.5500
Width_3
7.6000
