Panduit Pan-Net Panduit Pan-Net UTP28CH20BU

Industry Description

Exceed requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D channel and component standards. Small diameter, flexible cable design enables improved cable routing and management in high density applications; allows twice the amount of cables to be routed through cable managers and pathways when compared to traditional Category 5e patch cable. Each patch cord is 100% performance tested and wired to T568A. Constructed of Category 5e, 28 AWG stranded copper cable (nominal cable diameter is 0.149 in.(3.8mm) and Pan-Plug Modular Plugs for superior performance. Plug meets all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications. Plug uses an integral pair manager to optimize performance and consistency by reducing untwisting of conductors within the plug. Labels on patch cords provide identification of performance level, length, and quality control number. Patented tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes. Optional Patch Cord Color Bands snap on and off individual patch cables offering endless color-coding options. Optional RJ45 Plug Lock-In Device blocks unauthorized removal of cable, IP phone, other networking equipment or critical connection.

AD Description

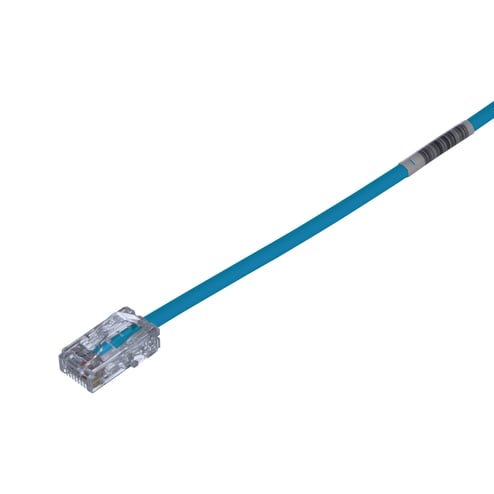

Panduit® PanNet® TX5e-28™ UTP28CH20BU U/UTP Small Diameter Patch Cord, Cat 5e Category, 28 AWG Stranded Copper Conductor, RJ45 Connector, 20 ft L Cord

Vendor Description

Category 5e/Class D, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
