Panduit Pan-Net Panduit Pan-Net PSF1PXD7MBL
Panduit Pan-Net PSF1PXD7MBL
Kirby Risk #: 2971982
UPC: 07498328368, 074983283682, 00074983283682
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

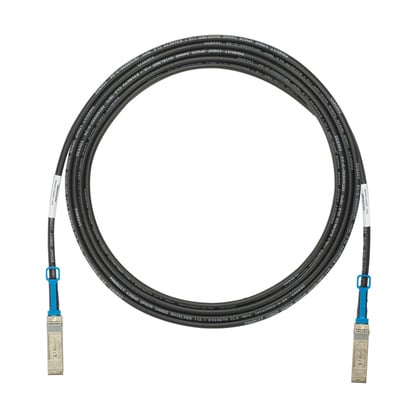

High speed twinaxial cable assembly with SFP+ 10Gbps hot pluggable modular connectors on each end, Black, 7 meters.
Modified Industry Description
SFP+ 10GIG DIRECT ATTACH PASSIVE
AD Description
Panduit® 10Gig™ SFP+ PSF1PXD7MBL High Speed Twin Axial Passive Cable Assembly, 10 Gb/s, 24 AWG Copper Conductor, SFP+ Connector, 7 m L Cord
Vendor Description
As virtualization, consolidation and convergence initiatives continue to grow, so do the demands placed on the physical infrastructure. to meet the needs for faster processing speeds, low power server inter connect and I/O consolidation deployments, Panduit® offers 10Gig™ SFP+ direct attach passive copper cable assemblies. this high speed data transport capability is ideal as server virtualization becomes more prevalent. with multiple virtual machines, server I/O consolidation topology requires 10 Gb/s interconnects between top of rack switches and servers.
Specifications
| Application |
Top of Rack Switching, I/O Consolidation, Fibre Channel Over Ethernet (FCOE), 10 Gigabit Ethernet, 8 Gbps Fibre Channel, High Performance Computer Clustering
|
|---|---|
| Color |
Black
|
| Conductor Type |
Copper
|
| Conductor Size |
24
|
| Country of Origin |
CRI
|
| Number Of Conductors |
Other
|
| Outside_Diameter |
0.236
|
| Plug_Type |
SFP+ 10Gbps Connector
|
| Series |
PSF1PXD
|
| Special Features |
|
| Standard |
Compliant to SFF-8431, SFF-8432 and SFF-8472, IEC flame compliance: IEC 60332, 60333, 60324, CE and RoHS Complaint
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
32 to 158
|
| Type |
High Speed Twin-Axial Passive
|
