Panduit Pan-Net Panduit Pan-Net P110PC1IGD5MY
Panduit Pan-Net P110PC1IGD5MY
Kirby Risk #: 2969144
UPC: 07498305684, 074983056842, 70074983056841, 00074983056842
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

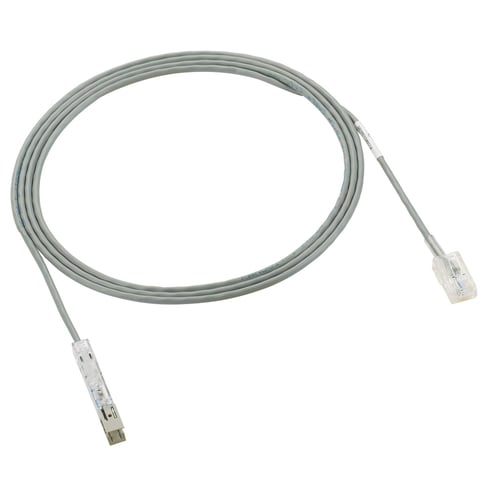

One Pair Pan-Punch 110 Patch Cord Assembly, International Gray, 5 meters.
Modified Industry Description
110 Patch Cord Assembly, 1 Pair, 5
AD Description
Panduit® Pan-Punch® P110PC1IGD5MY Patch Cord Assembly, Cat 3/5e, 24 AWG 1-Pair U/UTP Stranded Copper Conductor, 110 to RJ45 Connector, 5 m L Cord, Green
Vendor Description
The 110 punchdown system shall provide deep channels in each base that allow jacketed cable to be routed within 1/2 in of the point of wire termination. each base shall have color coded wire strips that assist in wire sorting and troubleshooting. connecting blocks shall have test access through the housing, allowing testing of individual contacts without removing the wire. the jumper troughs shall have rounded edges that eliminate sharp bends in cable and help maintain category 5e minimum bend radius.
Specifications
| Application |
Used in both voice networks and data local area networks designed for use with unshielded twisted pair copper wire and cable.
|
|---|---|
| Color |
Gray
|
| Conductor Type |
1-Pair U/UTP Stranded Copper
|
| Conductor Size |
24
|
| Country of Origin |
CHN
|
| Length1 |
9.2000
|
| Number Of Conductors |
RJ45 8(8)
|
| Outside_Diameter |
NA
|
| Plug_Type |
1-pair 110 Connector
|
| Series |
P110PC1
|
| Special Features |
|
| Standard |
Exceeds all channel and component requirements of ANSI/TIA-568.2-D Category 5e standard; Meets IEC 60352-4 requirements; IDC connection per TIA-568 requirements; RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
NA
|
| Type |
Category 3 Patch Cord Assembly
|
