Panduit Pan-Net Panduit Pan-Net NKP5E88MBL


Description

Industry Description

Category 5e, 8-position, 8-wire, keystone punchdown jack module. Black.

Modified Industry Description

NK Cat 5e punchdown jack module -

AD Description

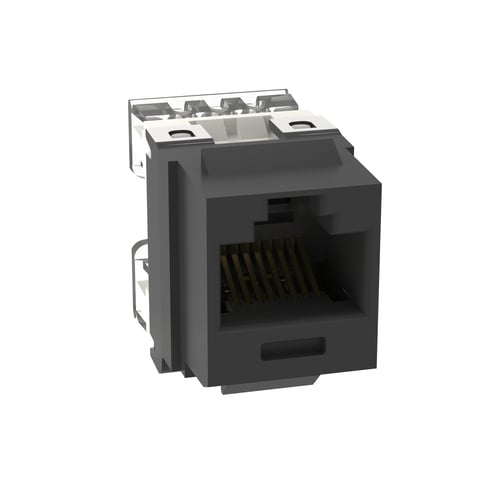

Panduit® NetKey® NKP5E88MBL 8-Position 8-Wire Cat 5e Punchdown Unshielded Keystone Jack Module, ABS/Polycarbonate/Copper, Black

Vendor Description

Category 5e/class D 8-position, industry standard Keystone jack module terminates 4-pair, 22 to 26 AWG, 100 Ohm unshielded pair cable. Jack module uses a punchdown tool to properly and securely terminate each conductor for optimum performance. The jack module contains a color coded label for T568A and T568B wiring schemes. A retention cap provides additional strain relief.

Specifications

Application
Unshielded
Color
Black
Country of Origin
CRI
Dimensions
0.65 in L x 1.16 in W x 0.9 in H
Length1
3.4500
Material
ABS/Polycarbonate
Mounting_Type
Surface
Special Features

  • Confidence that each jack module delivers specified performance
  • Each jack is 100% tested to ensure next and RL performance and is individually serialized for traceability
  • Eliminating the time to open each individual package and reducing on site waste, ideal for high volume installations
  • Marked with quality control number for future traceability
  • Universal Keystone jack modules snap-in and out of all NetKey® face plates modular patch panels and surface mount boxes for fast moves, adds and changes
  • Utilizes industry standard termination style and includes wire retention cap
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire Cat 5e Punchdown Unshielded
