Panduit Pan-Net Panduit Pan-Net NKDLCMZIW


Description

Industry Description

NK module supplied with one LC Sr./Jr. SFF singlemode duplex adapter with zirconia ceramic split sleeves. Intl White

AD Description

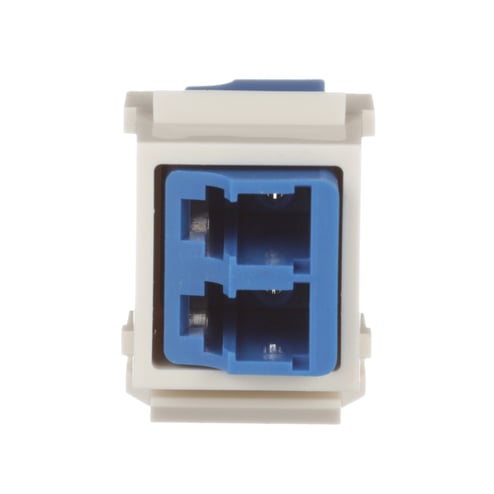

Panduit® NetKey™ NKDLCMZIW Duplex Fiber Optic Adapter Module With Zirconia Ceramic Split Sleeve, LC Connector, 1 Port, Panel Mount, Multi-Mode Fiber

Vendor Description

LC, SC and ST fiber optic adapters have integrated panel retention clips and are TIA/EIA-604 compliant or compatible. Each simplex adapter will connect one connector pair in one module space and each duplex adapter will connect two LC connector pairs in one module space. LC fiber optic adapters and adapter modules include phosphor bronze split sleeves for OM1 or OM2 multimode applications or zirconia ceramic split sleeves for OM3 multimode or single mode applications.

Specifications

Application
Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution.
Color
Off-White
Country of Origin
USA
Length1
3.6000
Material
Polycarbonate
Mounting_Type
Panel
Operating_Temperature
NA
Special Features

  • Accept FOCIS-10 junior LC connectors at the inside end for behind the wall applications
  • Allows color coding for network segregation
  • Improved modularity and higher density usage
  • Provides an adapter split sleeve material option to fit specific network requirements
  • System flexibility, modules are interchangeable with keystone outlets, boxes and patch panels
Standard
RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements
Sub_Brand
NetKey®
Type
Duplex
