Panduit Pan-Net Panduit Pan-Net JBP3DIW
Panduit Pan-Net JBP3DIW
Kirby Risk #: 2964490
UPC: 07498337139, 074983371396, 00074983371396
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

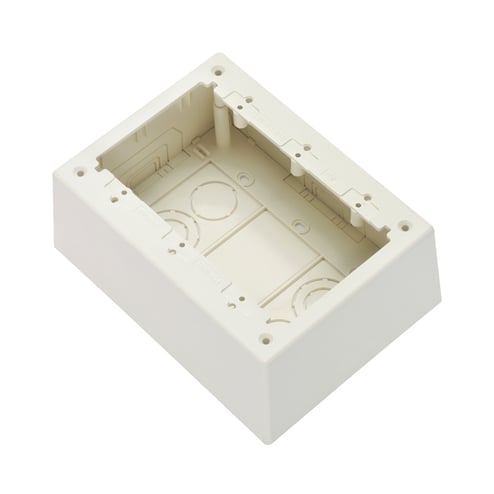

Three gang, two-piece screw together deep outlet box. Box accepts Pan-Way® Screw-On Faceplates or any NEMA standard three gang faceplates. For use with Pan-Way® LD, LDPH or T-45 surface raceway systems. 7.00in L x 5.19in W x 2.75in H (177.9mm x 131.9mm x 69.8mm). Breakouts for 1/2in, 3/4in and 1in diameter conduit, International White.
Modified Industry Description
Double Gang Power Rated 2-piece Deep Outlet Box, Off White
AD Description
Panduit® Pan-Way® JBP3DIW 2-Piece 3-Gang Power Rated Deep Outlet Box, 7 in L x 5.19 in W x 2-3/4 in H, PVC, Off-White
Specifications
| Application |
Box Accepts Pan-Way® Screw-On Faceplates Or Any Nema Standard Single Gang Faceplate.
|
|---|---|
| Color |
Off White
|
| Country of Origin |
USA
|
| Length1 |
9.3500
|
| Material |
PVC
|
| Special Features |
|
| Standard |
RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Power Rated
|
