Panduit Pan-Net Panduit Pan-Net ISTPSPNC3MBL
Panduit Pan-Net ISTPSPNC3MBL
Kirby Risk #: 2964426
UPC: 07498339746, 074983397464, 00074983397464
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

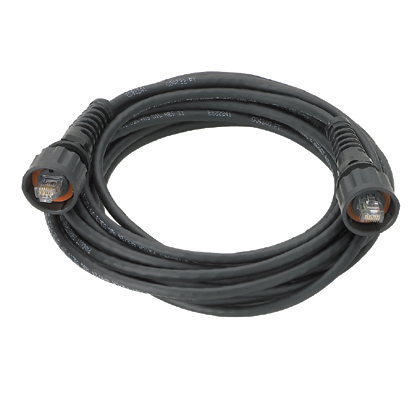

Patch cord constructed of industrial grade shielded Category 6 stranded cable with shielded modular plugs, 3 meters.
Modified Industry Description
INDUSTRIALNET CAT 6 SHIELDED PATCH
AD Description
Panduit® IndustrialNet™ TX6™ PLUS ISTPSPNC3MBL Class E Patch Cord, Cat 6, 26 AWG S/UTP Shielded Stranded Copper Conductor, RJ45 Modular Plug Connector, 3 m L Cord
Vendor Description
Industrial Ethernet patch cords shall be constructed of category 6, industrial grade, stranded, twisted pair cable for UTP and STP installations. each patch cord shall be pre-terminated to include category 6 industrial plugs on each end which are wired according to the T568B standard. Tethered caps shall be available to protect connectivity in unmated conditions. an IP67 rating shall be achieved when mated with an IP67 and NEMA UL type 12 industrial grade, bayonet style connector.
Specifications
| Application |
Shielded
|
|---|---|
| Boot_Type |
Modular Plug with Bulkhead
|
| Brand Name |
Panduit Pan-Net
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
26
|
| Cord_Length |
9.84
|
| Country of Origin |
CRI
|
| Number Of Conductors |
RJ45 8(8)
|
| Package_Quantity |
1
|
| Plug_Type |
Modular Plug with Bulkhead
|
| Special Features |
|
| Standard |
Exceeds ANSI/TIA-568-C.2 Category 6 and ISO11801 Class E standards, meets ANSI/TIA-1096-A, IEC 60603-7, IEC 61076-3-106 variant 1, conforms to ODVA specifications, rated IP67, meets IEEE 802.3af and IEEE 802.3at, RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
-4 to 158
|
| Type |
Class E Shielded
|
| Width_2 |
10.0000
|
| Width_3 |
10.0000
|
