Panduit Pan-Net Panduit Pan-Net FXE3-10EM5


Description

Industry Description

SC to LC (keyed E orange) multimode duplex patch cord, 16mm jacketed cable (one duplex SC connector on one end and one duplex keyed LC connector on the other end) 50/125µm

Modified Industry Description

SC to LC (keyed E - orange) 10Gig

AD Description

Panduit® FXE3-10EM5 Duplex OM3 Multi-Mode Riser Fiber Optic Patch Cord, 2 Fiber, 50 um Core, 16.4 ft L

Vendor Description

Fiber optic patch cords shall include simplex or duplex LC, SC, ST or MT-RJ connectors or FJ or keyed FJ plugs or jacks on both ends. RoHS compliant fiber optic pigtails shall include simplex or duplex LC, SC, ST or MT-RJ connectors or FJ or keyed FJ plugs or jacks on one end and open (un-terminated) on the other end. Patch cords and pigtails shall include laser optimized OM4, OM3 fiber or OM2, OM1 or OS1/OS2 fiber in 900 um tight buffered fiber, 1.6 or 3 mm simplex or duplex zipcord jacketed cable or 1.8 mm duplex zipcord jacketed cable. Jacketed cable shall be compliant with UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings. Patch cords and pigtails shall meet or exceed requirements of TIA/EIA-568-C.3. The fiber connectors shall be FOCIS compliant or compatible and exceed the requirements of TIA/EIA-455-21A for 500 mating cycles.

Specifications

Application

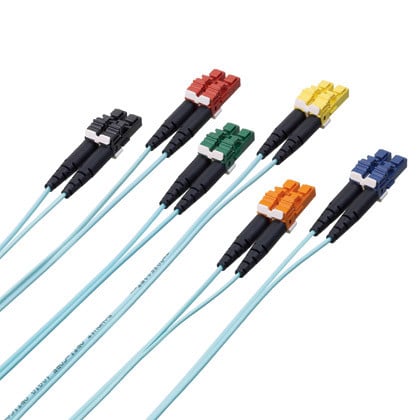

The primary application for Keyed LC Opti-Core ® Fiber Optic Patch Cords and Pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide.
Boot_Type
SC Duplex
Brand Name
Panduit Pan-Net
Color
Aqua Blue
Conductor Size
1.6mm
Country of Origin
CRI
Number_Of_Cores
2
Plug_Type
SC Connector
Special Features

  • Certified 10 GbE performance
  • Factory terminated and 100% tested for insertion loss and return loss
  • Single mode endface UPC polished
  • Test data supplied with each patch cord and pigta
Standard
RoHS Directive is not applicable;Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings
Sub_Brand
Panduit
Temperature_Rating
NA
Type
Multimode 50/125
Width_2
7.6000
Width_3
7.6000
