Panduit Panduit FR12TRBE58
Panduit FR12TRBE58
Kirby Risk #: 2955703
UPC: 07498383581, 074983835812, 00074983835812
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description
Used to support the 12x4 system from existing threaded rod installations. Bracket is secured to threaded rod with two split nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps, For 5/8" Threaded Rod.
Modified Industry Description
Bracket, Existing 5/8IN Threaded
AD Description

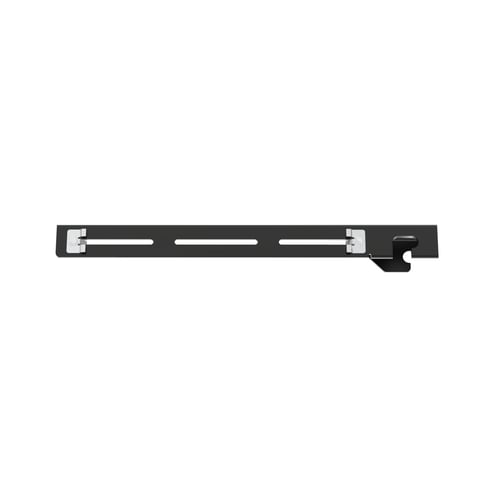

Panduit® FiberRunner® QuikLock™ FR12TRBE58 Existing Mounting Bracket, 18-3/4 in L x 1.82 in W x 2 in H, For Use With FiberRunner® 12 x 4 in Routing System Fitting, Steel
Specifications
| Application |
(1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance
Copper Cabling, (2) It is Suited for Data Center Applications
where Cable is Routed from Distr
|
|---|---|
| Color |
Black
|
| Country of Origin |
USA
|
| Length1 |
18-3/4
|
| Material |
Steel
|
| Special Features |
|
| Standard |
UL Listed to 2024A Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR
|
| Sub_Brand |
Panduit
|
| Type |
Existing
|
