Panduit Panduit FR12ACB12
Panduit FR12ACB12
Kirby Risk #: 2955687
UPC: 07498383593, 074983835935, 00074983835935
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

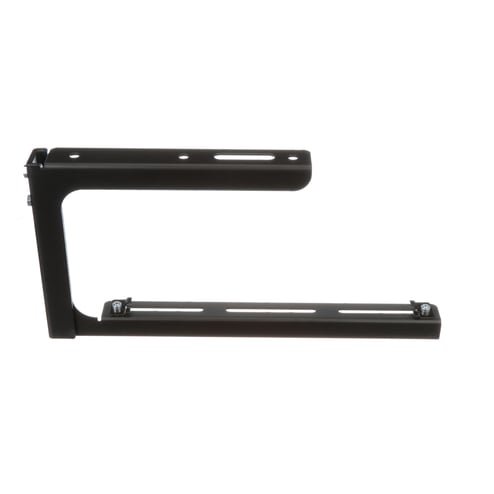

Used to support the 12x4 system from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system. Two position height adjustments to accommodate system with or without hinged cover. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.
Modified Industry Description
BRACKET, TOP SUPPORT ADJUSTABLE C
AD Description
Panduit® FiberRunner® QuikLock™ FR12ACB12 Adjustable Top Support C Bracket, For Use With FiberRunner® 12 x 4 in Routing System, 1/2 in Threaded Rod, Steel, Black
Specifications
| Application |
(1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr
|
|---|---|
| Color |
Black
|
| Country of Origin |
MEX
|
| Dimensions |
17.74 in L x 1.66 in W x 8.72 in H
|
| Length1 |
19.0000
|
| Material |
Steel
|
| Special Features |
|
| Standard |
Ul Listed to 2024A Optical Fiber Cable Routing Assemblies UL Recognized (File No. E147128) Slotted Wall Csa Certified (File No. 016446 0 000) Slotted Wall
|
| Sub_Brand |
Panduit
|
| Type |
Adjustable
|
