Panduit Pan-Net Panduit Pan-Net FLCSMC6FDB


Description

Industry Description

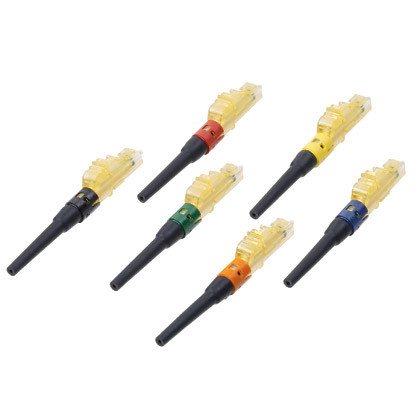

Pre-Polished Keyed LC Simplex OptiCam OM1 Connector (Keyed F, Dark Blue) with 900um Black boot

Modified Industry Description

Keyed LC OptiCam 62.5/125 OM1

AD Description

Panduit® OptiCam® FLCSMC6FDB Keyed Pre-Polished Fiber Optic Connector With 900 um Black Boot, LC Simplex Connector, OM1 62.5/125 um Multi-Mode Fiber, 900 um Buffered, Zirconia Ceramic Ferrule

Specifications

Application
Maintenance or emergency restoration of secure fiber networks and retrofit/initial install of behind the wall (BTW) connections and the permanent side of interconnect and cross-connect patch fields.
Color
Dark Blue
Connection
Keyed LC
Country of Origin
CRI
Length1
3.5000
Special Features

  • Allows up to two re-terminations to achieve optimum termination results, reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
  • Cable retention boot assemblies consistently provide higher than industry standard cable retention
  • Cam activated fiber and buffer clamp mechanisms provide superior fiber and buffer retention less sensitivity to fiber tensile loading
  • Color specific keys with positive and negative keying features mechanically and visually distinguish connections to prevent unintentional insertion into unlike keyed or non-keyed ports, allow network design flexibility and versatility and accommodate more discrete networks
  • Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
  • Factory pre-polished fiber endface eliminates time consuming field polishing to reduce installation costs, labor, scrap and the number of tools required
  • Factory pre-polished fiber stub endface eliminates inconsistent and time consuming field polishing to deliver required optical performance
  • Insertion loss 0.3 dB average (multi-mode and singlemode)
  • Laser marked to identify fiber stub fiber type (9 um, 62.5, 50 or 50X)
  • Non-optical disconnect design maintains data transmission under tensile loads for jacketed cable
  • OptiCam® termination tool simplifies tooling and termination and virtually eliminates operator error by providing visual indication of proper termination after the cam step has been completed
  • Patented re-termination capability provides yield rates approaching 100%
  • Quick installation provide field termination in less than half the time of field polish connectors
  • Spring loaded senior rear pivot latch LC connector
  • Translucent housing assembly facilitates inspection of the fiber termination quality, resulting in rapid installations, improved termination yields and lower installed costs
  • Universal termination tool with integrated visual termination indicator ensures fast, consistent and optimal terminations of all OptiCam® connectors with connector specific cradles
Standard
RoHS directive is not applicable
Sub_Brand
Panduit
Temperature_Rating
140
Type
Keyed LC Simplex Connectors
