Panduit Pan-Net Panduit Pan-Net STP28X1MIG
Panduit Pan-Net STP28X1MIG
Kirby Risk #: 2950254
UPC: 074983003266, 00074983003266, 07498300326
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description
Category 6A Performance, 28AWG, F/UTP Patch Cord, CM/LSZH, International Gray, 1m.
Modified Industry Description
Category 6A Performance, 28AWG, F/UTP Patch Cord, CM/LSZH, International Gray, 1m.
AD Description

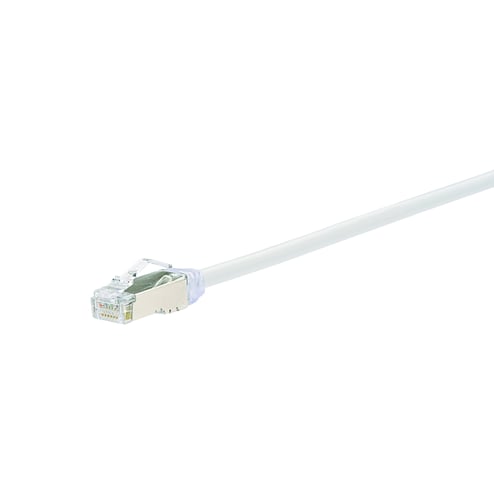

Panduit® PanNet® TX6A-28™ STP28X1MIG Class EA Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Shielded Solid Copper Conductor, RJ45 Modular Plug Connector, 1 m L Cord
Vendor Description
Cat 6A/class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. patch cords are offered in multiple lengths and colors for design flexibility.
Specifications
| Application |
Shielded
|
|---|---|
| Boot_Type |
Modular Plug
|
| Brand Name |
Panduit Pan-Net
|
| Color |
International Gray
|
| Conductor Material |
Copper
|
| Conductor Size |
28
|
| Country of Origin |
MUL
|
| Jacket_Material |
LSZH Material
|
| Number Of Conductors |
RJ45 8(8)
|
| Plug_Type |
Modular Plug
|
| Special Features |
|
| Standard |
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
167
|
| Type |
Class EA Shielded Small Diameter
|
| Width_2 |
9.1500
|
| Width_3 |
8.6875
|
