Panduit Pan-Net Panduit Pan-Net CJSK5E88TGRD


Description

Industry Description

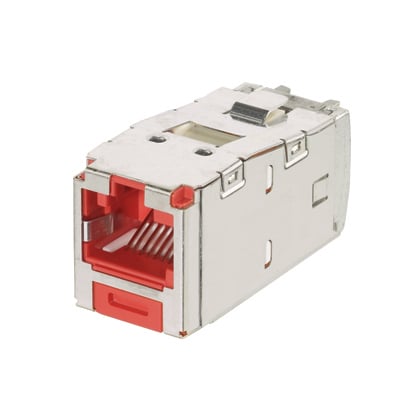

Keyed, Category 5e, RJ45, 8-position, 8-wire universal shielded black module with integrated shield. Red.

Modified Industry Description

MINI-COM KEYED MODULE, CAT 5E,

AD Description

Panduit® Mini-Com® TX5e™ CJSK5E88TGRD 8-Position 8-Wire Keyed Shielded Universal Jack Module With Integral shield, Giga-TX (TG Style)/RJ45 Connector, 26 to 22 AWG Copper Cable, Cat 5e Category

Vendor Description

Cat 5e/Class D, 8-position keyed shielded jack Mini-Com® shall terminate unshielded twisted 4-pair, 22 to 26 AWG, 100 ohm shielded twisted cable without the use of a punchdown tool. The jack Mini-Com® shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. The forward motion termination method shall optimize performance by maintaining cable pair geometry and eliminating conductor untwist. The red termination cap shall be color coded for T568A and T568B wiring schemes.

Specifications

Application
Shielded
Color
Red
Country of Origin
USA
Length1
3.5000
Material
ABS
Special Features

  • 100% performance tested, confidence that each jack Mini-Com® will deliver the critical electrical performance requirements
  • Color specific keys with positive and negative keying features all network design flexibility and versatility and accommodate more discrete networks
  • Individually serialized, marked with quality control number for future traceability
  • Integrated block out feature prevents standard RJ11 modular plugs from mating with keyed jack Mini-Com®
  • Mechanically and visually distinguish connections to prevent unintentional insertion into unlike keyed or non-keyed ports
  • True strain relief controls cable bend radius for long term installed performance
  • Utilizes enhanced Giga-TX™ technology, optimizes performance by eliminating conductor untwist and reduces installation time and expense
Standard
RoHS Compliant
Sub_Brand
Panduit
Type
Keyed Shielded Jack Module
